Electric Transfer Cart
KPD Low-Voltage Rail Powered Transfer Cart
KPD low-voltage rail powered transfer cart: 36 V fed through the running rails, no trailing cable, 24-hour operation on curved and loop tracks, up to 150 t.
Overview

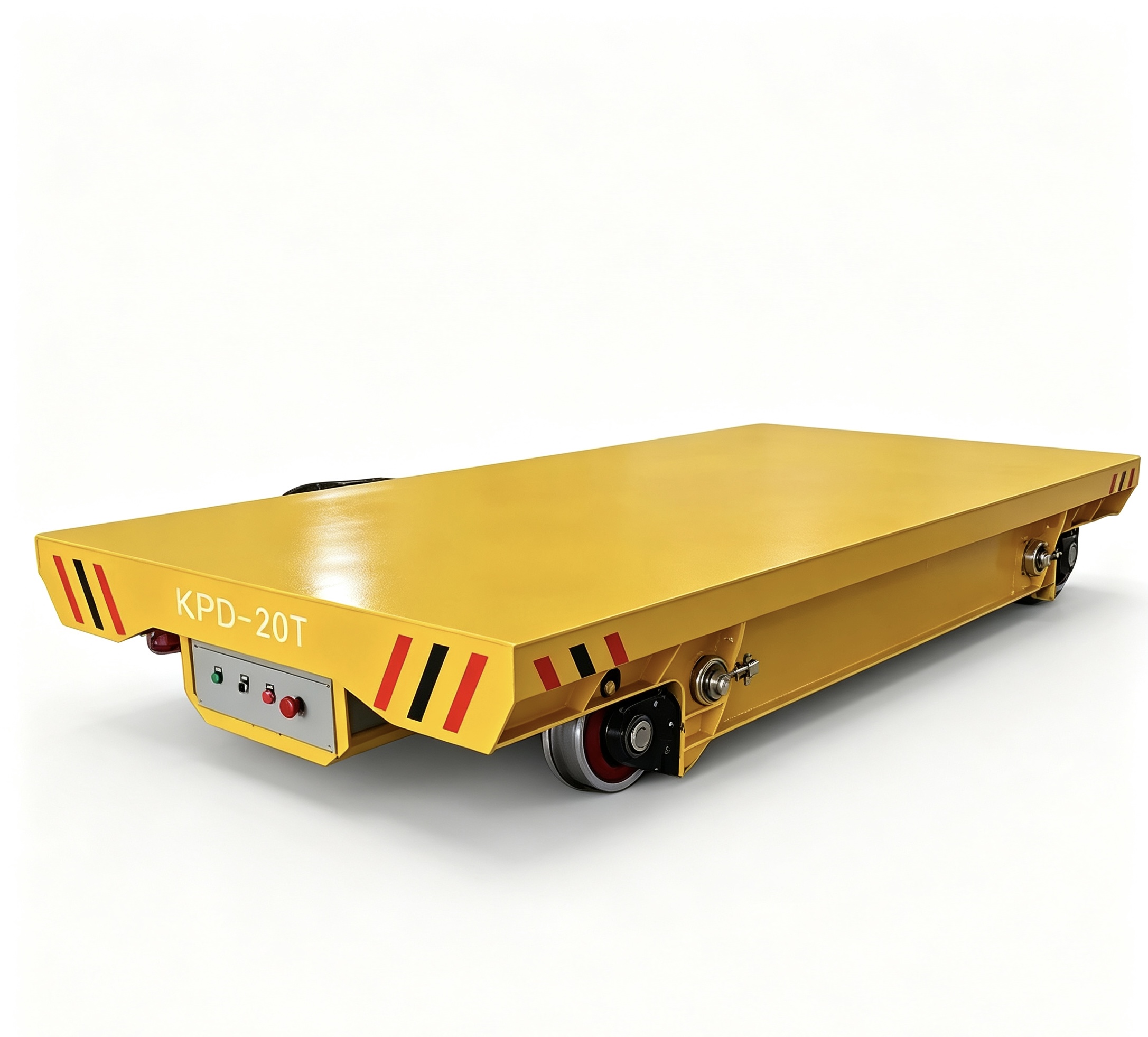

KPD Low-Voltage Rail Powered Transfer Cart
The KPD low-voltage rail powered transfer cart takes its power from the rails. A step-down system on the ground converts three-phase or two-phase AC 380 V into a safe 36 V, which is fed to the conductive rails that also serve as the running track. The low voltage reaches the on-board transformer through the conductors of the cart, where it is boosted back to 380 V or rectified to 48 V DC to drive the three-phase or DC motor.
The KPD transfer cart supports 24-hour continuous operation. Its cable-free design is safer and makes remote control and automated operation easier. It resists high temperatures and impact, adapts to cross-transport layouts and can travel along curved and loop tracks. By adding step-down transformers along the route, the travel distance is not restricted.
Key features
-
01
Simple structure, easy operation, high mechanical strength and heavy load capacity
-
02
Excellent stability without permanent deformation
-
03
Maximum load capacity up to 150 tons
-
04
Capable of non-stop continuous operation with no time limit
-
05
Three-in-one integrated drive motor, convenient for maintenance
-
06
Soft start configuration with Schneider frequency inverter
-
07
Multi-layer safety protection warning alarm, anti-collision radar and travel limit switch
-
08
Multiple control modes handheld pendant controller, radio remote control and joystick wireless remote control
-
09
Customizable functions variable-frequency startup, explosion-proof design, hydraulic lifting, rollover function, high-precision platform, fixed-point stop, scanning radar positioning, high positioning accuracy, anti-rollover structure, reinforced load-bearing, climbing capability, track turning adaptation, waterproof treatment, traverse unit and aisle fork
Where it is used
- Typical loads Steel coils, aluminum coils, paper rolls, metal pipes, plastic rollers, casting parts, stamping dies, large steel structural parts, precast concrete components and other heavy, long or cylindrical workpieces.
- Metallurgy & Steel Industry Steel plants, ironworks, metal processing workshops, for transporting steel coils, steel ingots, steel plates, profiles and scrap steel.
- Machinery Manufacturing Auto factories, heavy machinery workshops, mold workshops, machining plants for die turnover, large part cross-station transfer.
- Paper & Printing Mills Transport paper rolls, pulp rolls and finished paper products.
- Shipbuilding Industry Shipyards for transferring hull parts, steel plates, pipe fittings and cabin components.
- Construction & Prefabrication Precast component factories, engineering bases for concrete blocks, steel beams and prefabricated wall panels.
- Painting & Coating Workshops Cooperate with spraying lines to transfer workpieces without polluting power cables.
- Warehouse & Logistics Large storage yards, port cargo areas, freight stations for pallet goods, heavy container and bulk material turnover.
- New Energy Industry Wind power factories for wind shafts, battery factories for large raw material turnover.
- Chemical & Non-ferrous Metal Plants Aluminum factories, copper processing workshops for aluminum coils, copper rolls and metal raw materials.
- Equipment Matching Cooperate with overhead cranes and gantry cranes to realize cross-span heavy load transportation inside workshops.
Questions about this model
Frequently asked questions
What maximum load capacity can you offer?
Standard models range from 2 t to 150 t. We tailor the load capacity, platform size and wheel layout to your requirements.
What control methods does the transfer cart support?
Handheld pendant (wired) control, wireless radio remote control and joystick remote control. Several modes can be fitted at the same time and switched freely.
