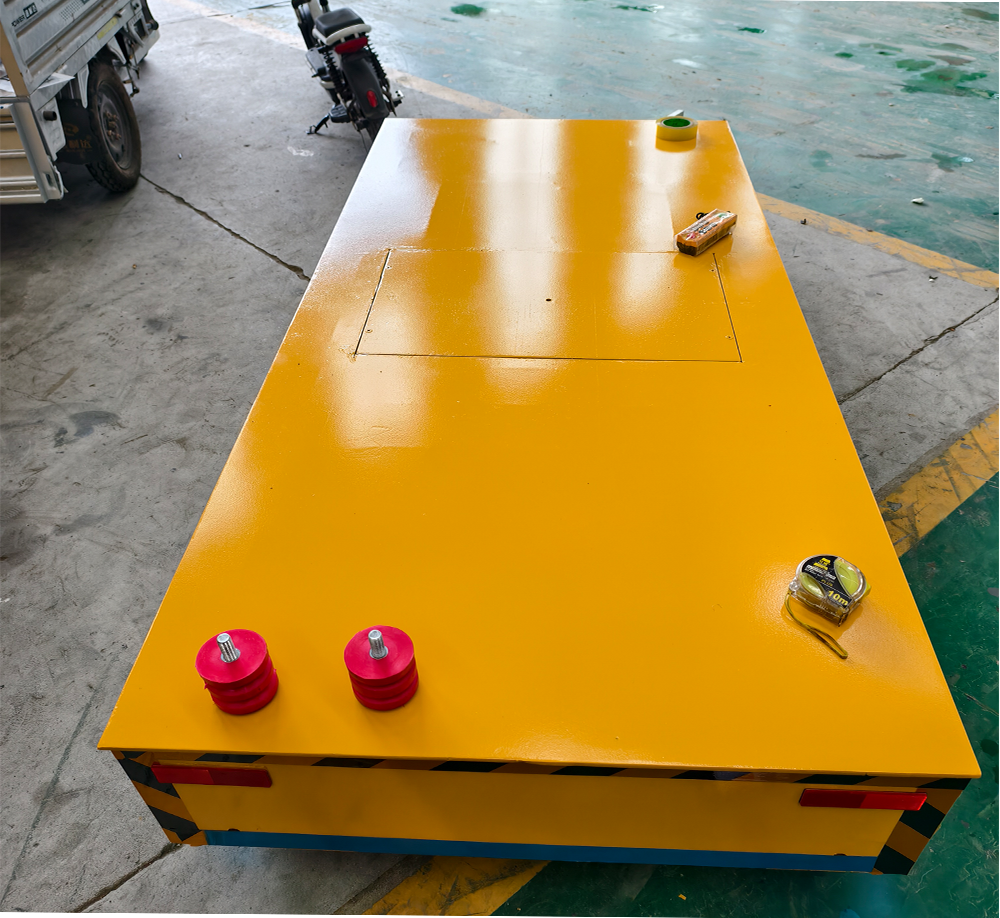

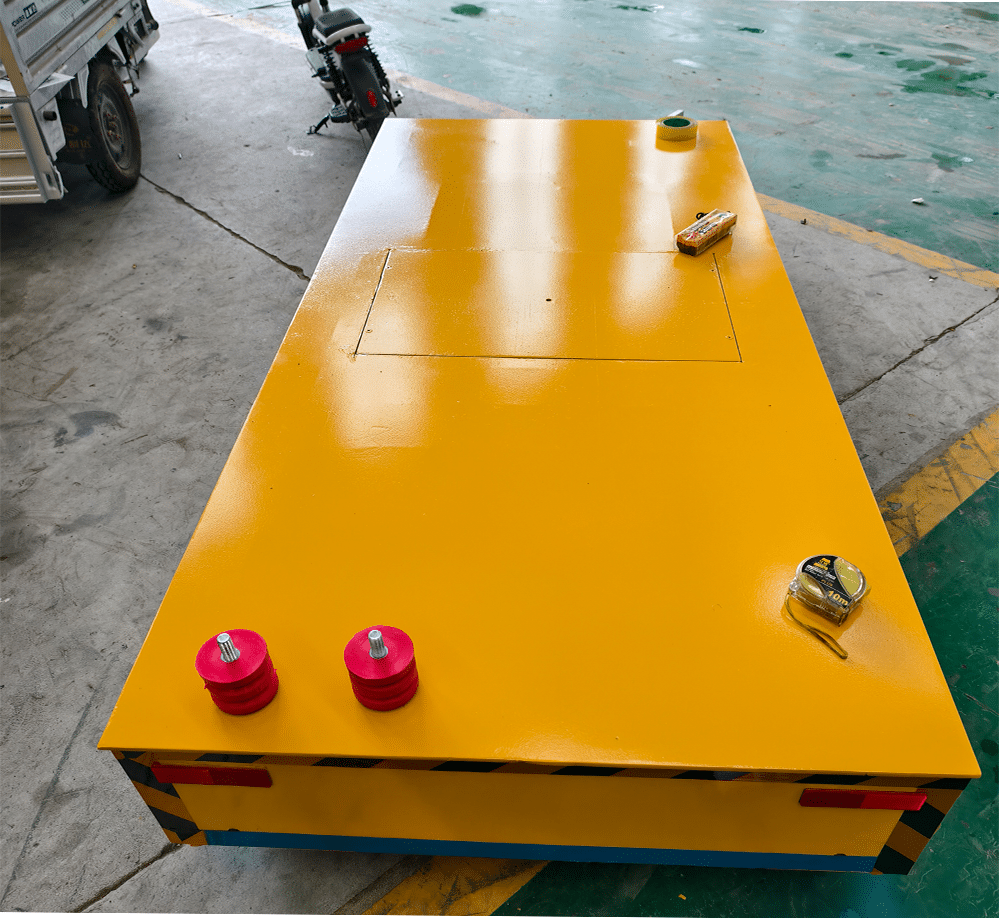

KPW Heavy Load Electric Trackless Transfer Cart
KPW trackless electric transfer cart, 2–100 t. Battery powered on polyurethane wheels, runs on flat concrete with no rails; wireless remote and pendant control.
Specification
Technical parameters
| Model | KPW-2T | KPW-10T | KPW-16T | KPW-30T | KPW-50T | KPW-80T | KPW-100T |
|---|---|---|---|---|---|---|---|
| Table Size (m) | 2.0*1.5*0.45 | 2.3*2.0*0.55 | 4*2*0.6 | 3.5*2.2*0.7 | 5.5*2.6*0.8 | 6.5*2.8*0.95 | 6.6*3.0*1.2 |
| Power Supply | Maintenance Free Battery | ||||||
| Wheel Base (m) | 1.08 | 1.65 | 1.7 | 1.65 | 2 | 1.95 | 2 |
| Wheel Dia. (m) | 0.25 | 0.35 | 0.4 | 0.45 | 0.6 | 0.6 | 0.6 |
| Running Speed (m/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 |
| Motor Power (kw) | 1 | 1.6 | 2 | 3.5 | 5 | 8 | 10 |
| Battery Capacity (Ah) | 250 | 250 | 250 | 450 | 500 | 800 | 1000 |
| Battery Voltage (v) | 24 | 48 | 48 | 48 | 48 | 72 | 72 |
| Max Wheel Load (Kn) | 14.4 | 42.6 | 64.5 | 110.4 | 174 | 185 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.5 | 6.8 | 8 | 14.6 | 26.8 |
Load capacity, table size and power supply are built to order.
Overview
KPW Heavy Load Electric Trackless Transfer Cart

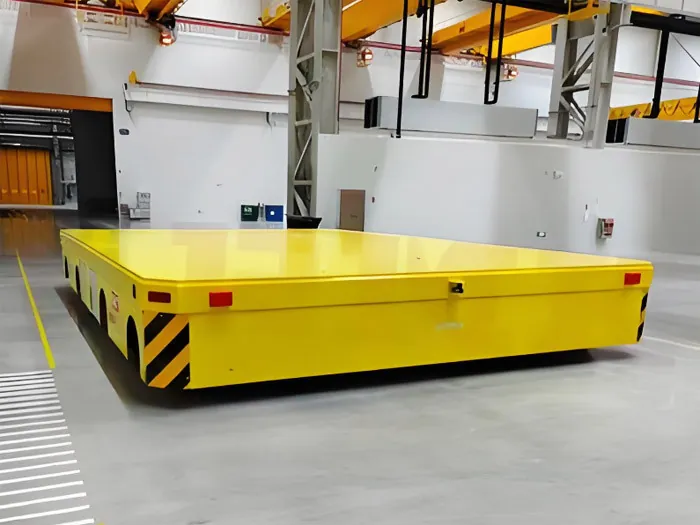

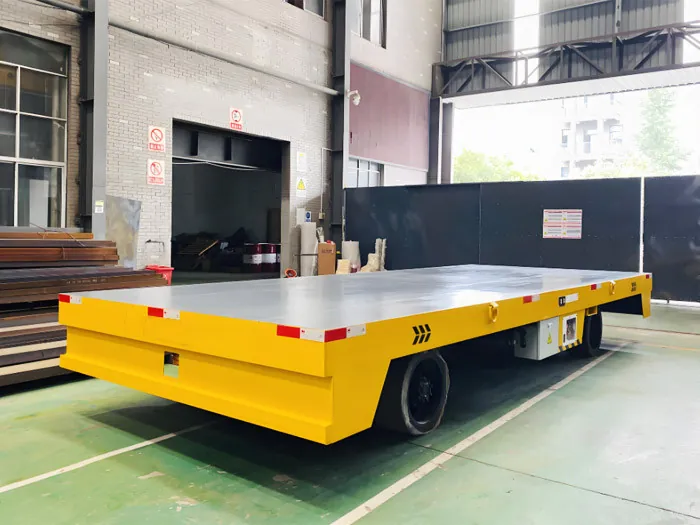

The KPW series trackless electric transfer cart is a battery-powered heavy-duty transport cart on polyurethane wheels. It needs no steel rails, only flat concrete ground. A thickened steel frame and low center of gravity give stable load-bearing, and the cart is equipped with wireless remote and wired dual control, adjustable speed and full safety devices such as emergency stop and anti-collision buffers.
Optional V-shaped anti-roll supports and 360° omnidirectional steering are available for transporting coils, pipes, molds and steel parts. With load capacities from 2 t to 100 t and fully customizable size and functions, the KPW trackless transfer cart works flexibly indoors and outdoors alongside overhead and gantry cranes.
Key features
-
01
High automation, self-propelled and steerable; max customized load up to 100 tons
-
02
Multiple power options battery, cable reel, busbar, magnetic induction drive
-
03
Dual control wireless remote control + wired hand pendant, speed adjustable
-
04
Multi-layer safety design warning light, emergency stop, anti-collision buffer, overload protection, low battery alarm
-
05
Thickened steel frame & low gravity design to prevent tipping; wear-resistant wheels for long service life
-
06

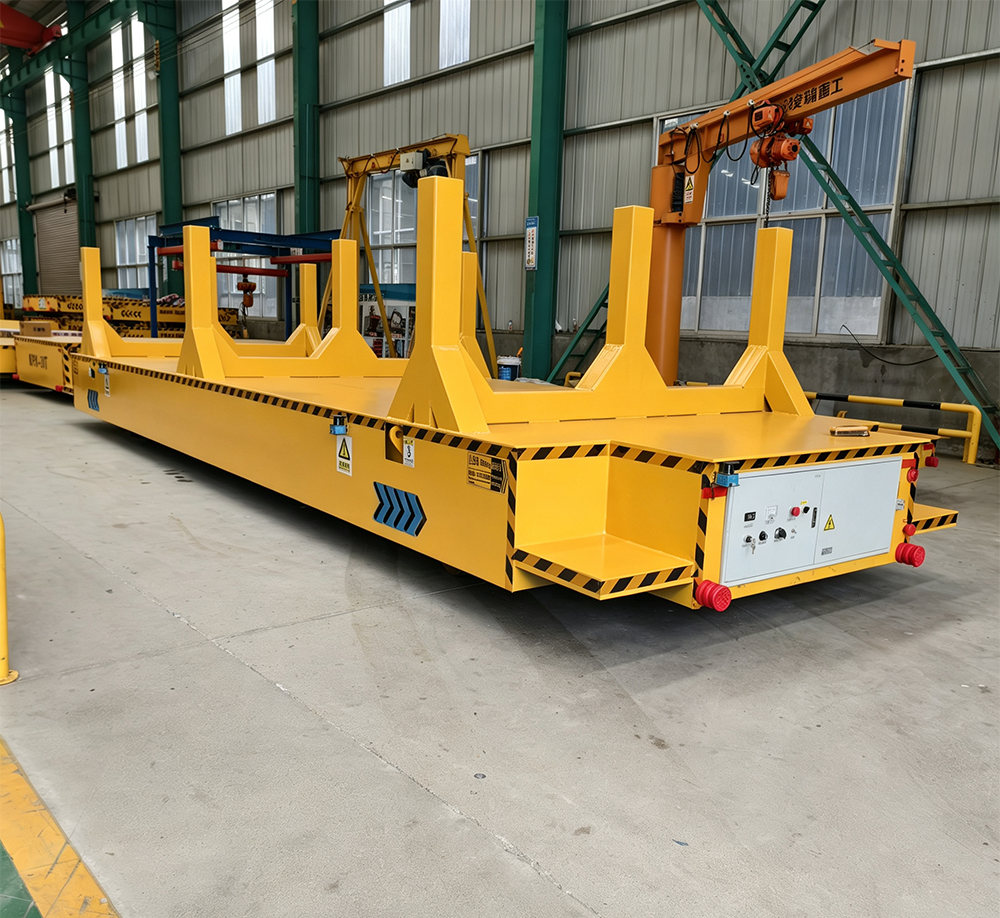

Optional V-shaped anti-slip platform for coils, pipes and round workpieces
-
07
Low noise, zero pollution, easy operation and low maintenance cost
-
08
360° omnidirectional steering optional for narrow space operation; AGV automatic navigation available
Where it is used
- Typical loads Steel coils, aluminum coils, paper rolls, metal pipes, plastic rollers, casting parts, stamping dies, large steel structural parts, precast concrete components and other heavy, long or cylindrical workpieces.
- Metallurgy & Steel Industry Steel plants, ironworks, metal processing workshops, for transporting steel coils, steel ingots, steel plates, profiles and scrap steel.
- Machinery Manufacturing Auto factories, heavy machinery workshops, mold workshops, machining plants for die turnover, large part cross-station transfer.
- Paper & Printing Mills Transport paper rolls, pulp rolls and finished paper products.
- Shipbuilding Industry Shipyards for transferring hull parts, steel plates, pipe fittings and cabin components.
- Construction & Prefabrication Precast component factories, engineering bases for concrete blocks, steel beams and prefabricated wall panels.
- Painting & Coating Workshops Cooperate with spraying lines to transfer workpieces without polluting power cables.
- Warehouse & Logistics Large storage yards, port cargo areas, freight stations for pallet goods, heavy container and bulk material turnover.
- New Energy Industry Wind power factories for wind shafts, battery factories for large raw material turnover.
- Chemical & Non-ferrous Metal Plants Aluminum factories, copper processing workshops for aluminum coils, copper rolls and metal raw materials.
- Equipment Matching Cooperate with overhead cranes and gantry cranes to realize cross-span heavy load transportation inside workshops.
Questions about this model
Frequently asked questions
What load capacity can be customized?
Standard KPW models range from 2 t to 100 t; other capacities can be customized upon request.
What power modes are available?
Battery power is the primary option; cable reel, busbar and magnetic induction power are optional.
