KBK Light Crane System
KBK Light Crane System
Find the direct facatory for the Manufacturer Customization KBK Light Crane System, we can offer the worldwide free shipping with best quality and price
Specification
Technical parameters
| Category | Item | Parameters | Description |
|---|---|---|---|
| I. Basic Specifications | Crane Type | kbk crane | |
| Rated Lifting Capacity | on Customer's Request | ||
| Span | on Customer's Request | ||
| Lifting Height | on Customer's Request | ||
| Duty Class / Working Group | A3-A8 | Adapt to Different Working Condition Requirements | |
| Travel Speed | 0~20m /Min | ||
| Hoisting Speed | 8m/5m Per Minute | With VFD optional | |
| Crane Travel Speed (Gantry/Bridge) | 0~30m/Min | Smooth operation design | |
| Trolley Travel Speed | 0~20m/Min | Precise positioning | |
| Power Supply Voltage | 220V/380V/415 on Request | Adaptable to voltages of different countries | |
| Frequency | 50/60Hz on Request | Globally compatible | |
| Control Mode | PLC Control System | Easy to operate | |
| Operation Mode | Remote Control+Button Control | Optional as required | |
| Protection Grade | IP55 | Suitable for harsh working conditions | |
| Crane Gauge | Same as Span (on Customer's Request) | Safe and reliable | |
| II. Structure & Material | Main Girder Structure Type | Box-Type Welded Structure | Stable load bearing |
| Wheel Material | 45# Steel (Quenched & Tempered) | Wear-resistant and durable | |
| Steel Wire Rope Specification | 6×37-FC (on Customer's Request) | Anti-breakage design | |
| Hook Type | Single Hook (Double Hook Optional) | Adapt to different heavy loads | |
| Reducer Type | Hardened Gear Reducer | Low noise and high efficiency | |
| Motor Brand / Type | Siemens Delixi | ||
| III. Functions & Configurations | With Cabin or Not | Optional (Standard: No Cabin) | |
| With Variable Frequency Speed Control or Not | Yes (Hoisting & Traveling) | ||
| With Overload Limiter or Not | Yes (10% Overload Alarm, 110% Overload Cut-off) | Overload protection | |
| With Travel Limit Switch or Not | Yes (Upper/Lower Limit + Left/Right Limit) | ||
| With Buffer or Not | Yes (Rubber Buffer) | Shock reduction | |
| Braking Mode | Electromagnetic Disc Brake | ||
| IV. Certification & Service | Product Certification | CE, ISO9001 | Compliant with international standards |
| Warranty Period | 24m (Core), 18m (Non-Core Parts) | ||
| Installation Service | Free Tech Support, on-Site Install & Perm Maint | Provide installation guidance |
Non-standard span, capacity and duty class are made to order.
Overview

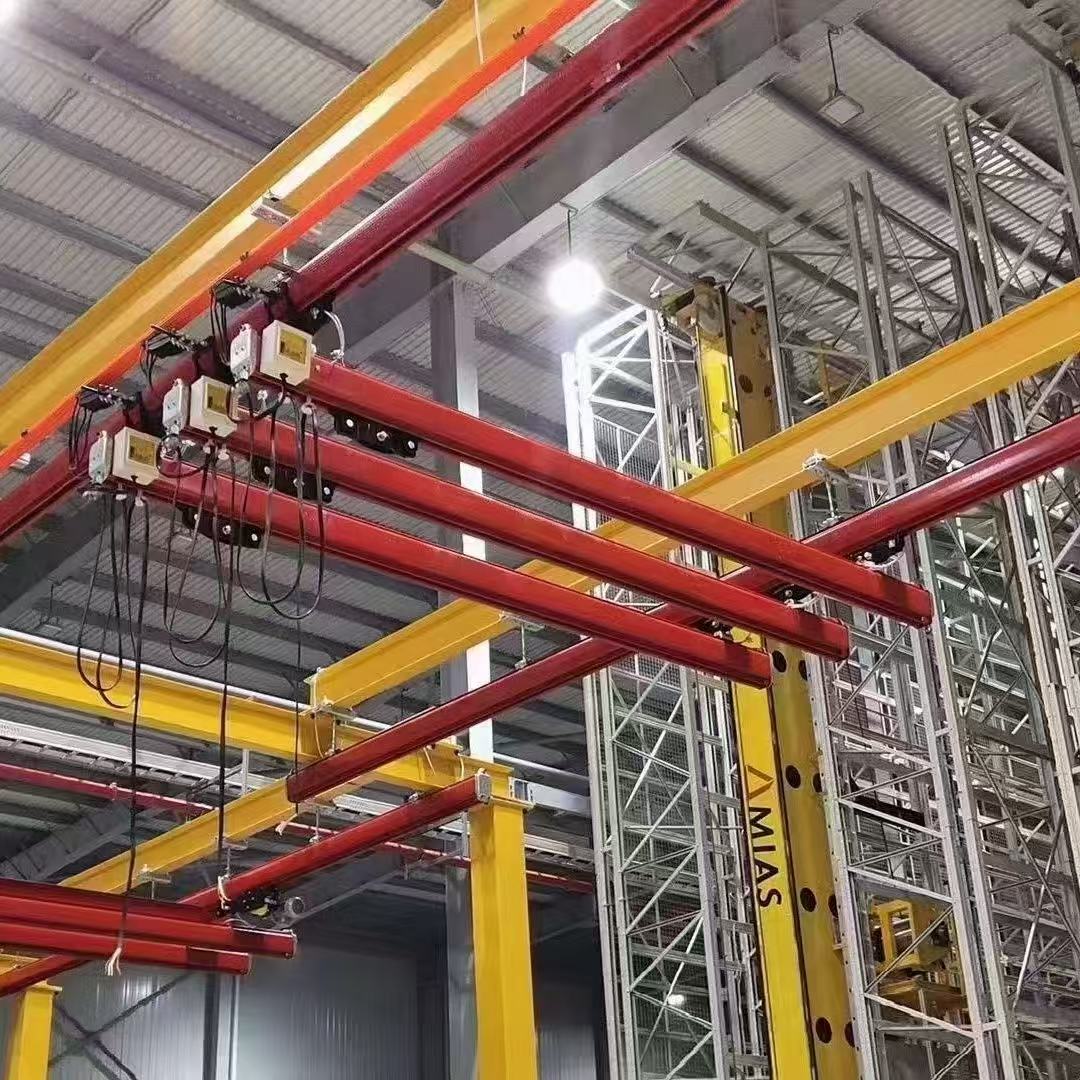

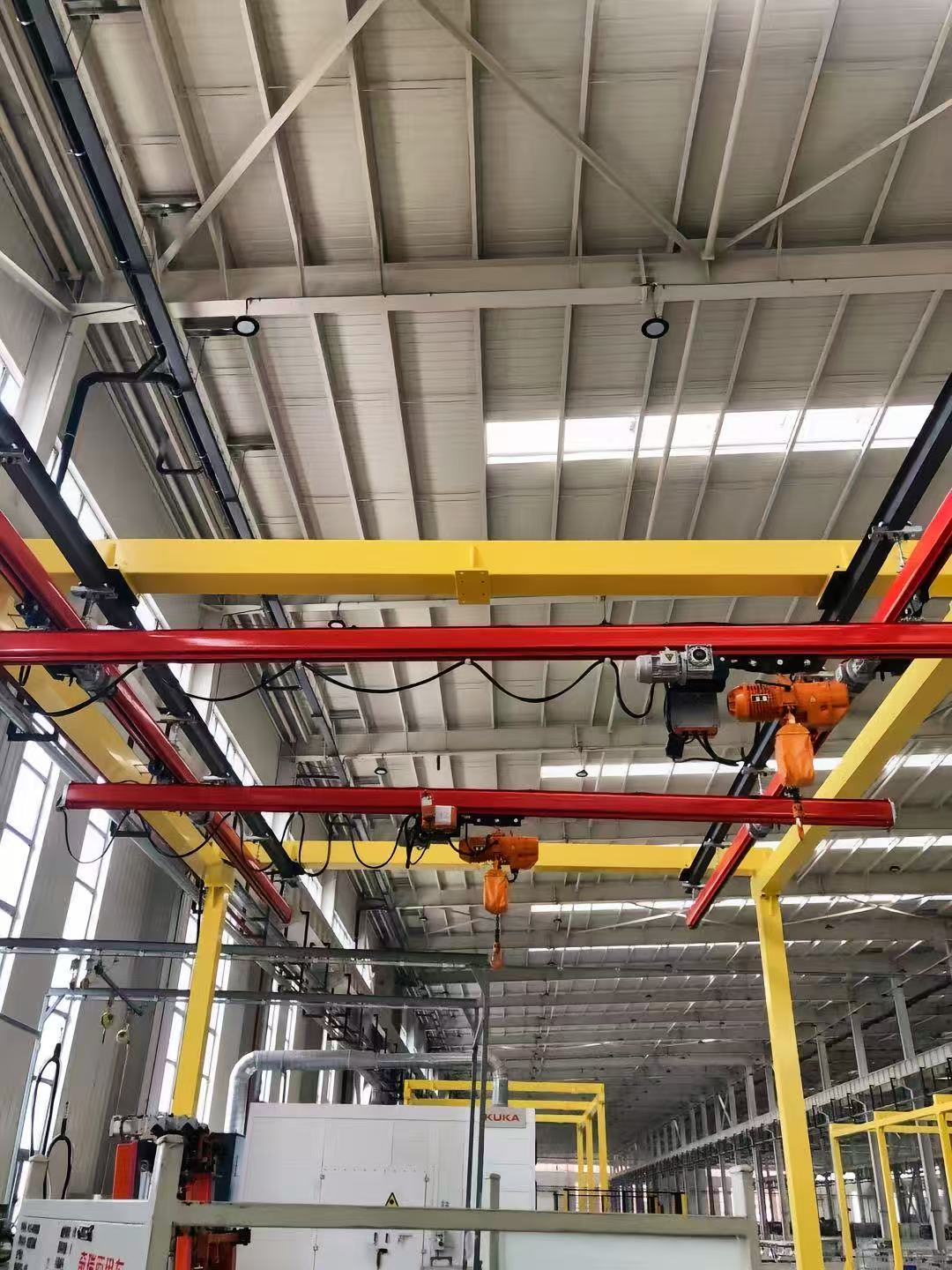

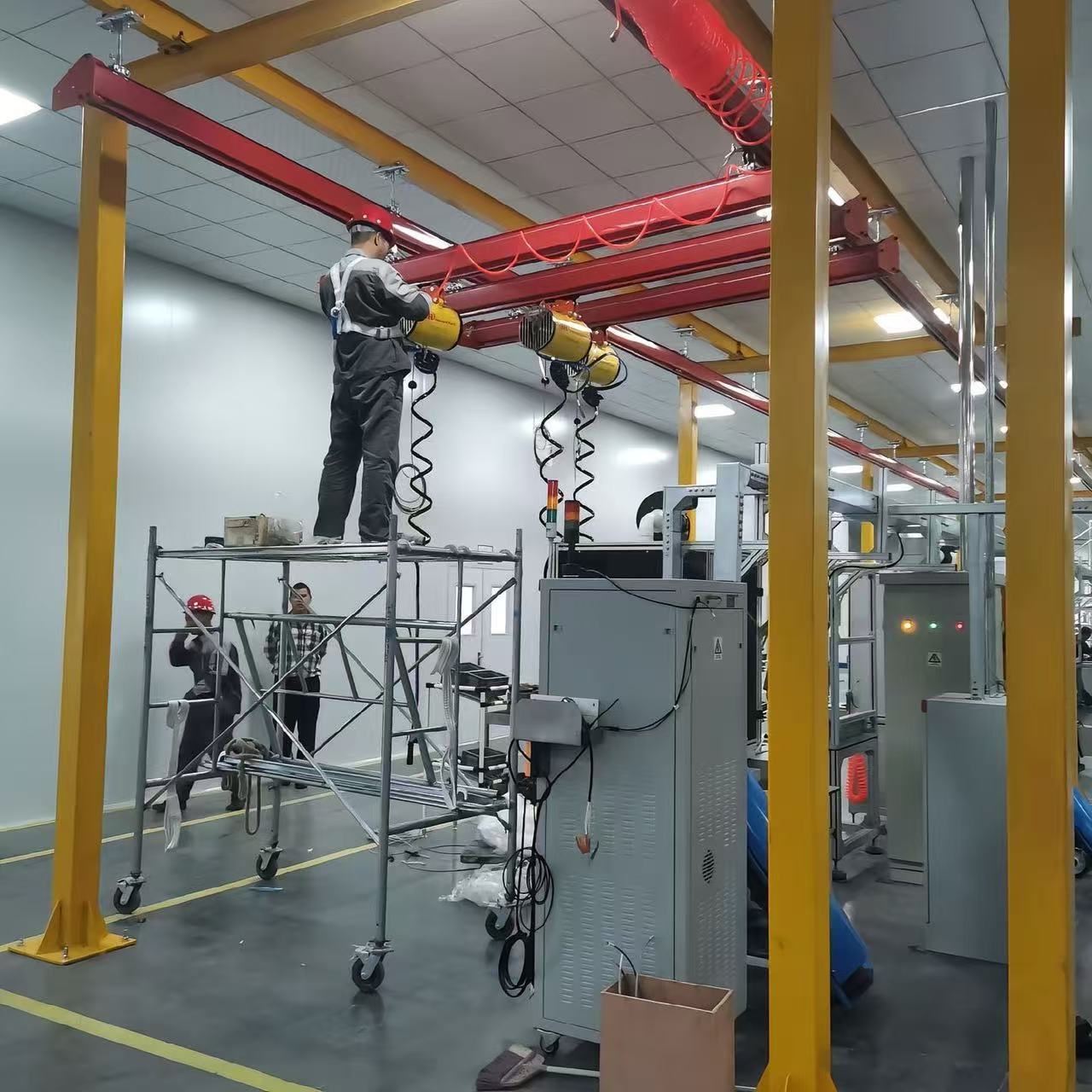

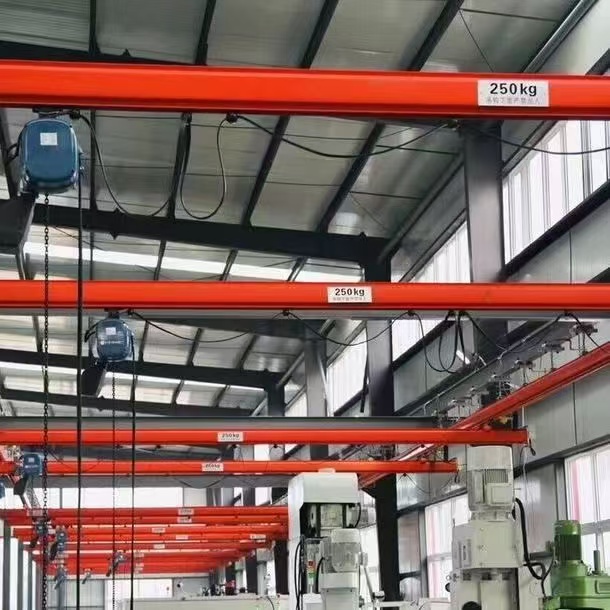

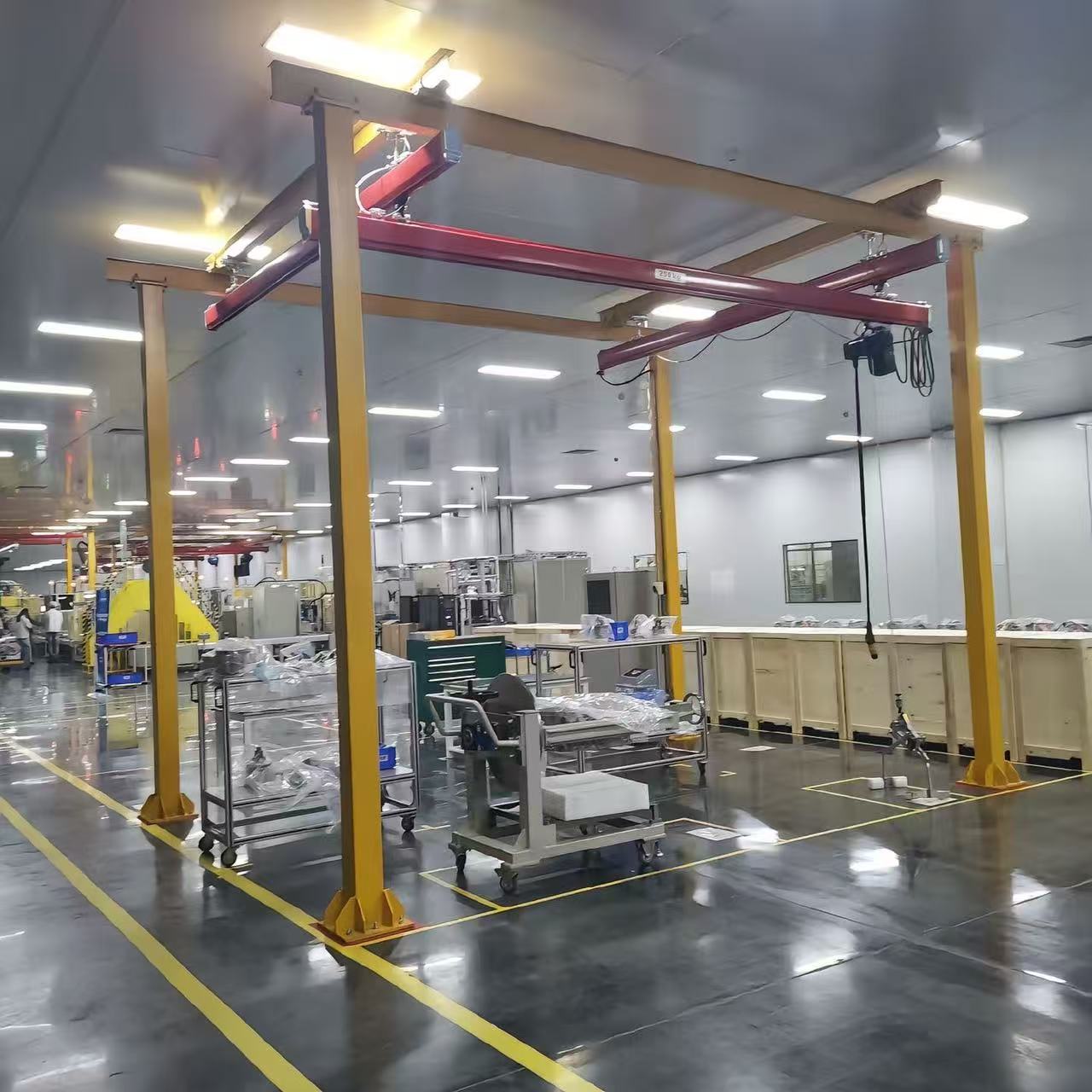

KBK Light Crane System
KBK light flexible crane system is a modular, suspended lightweight lifting equipment. Adopting standardized aluminum alloy or steel profile rails, it features flexible combination, free track layout and easy installation. With load capacity from 125kg to 3000kg, it can be manually or electrically operated. It runs smoothly with low resistance, realizing efficient aerial material handling. It is the ideal ergonomic lifting solution for modern flexible production lines.
Key features
-
01
Modular & Super Flexible Design Standard modular components support straight, curved, circular and branched track layouts. The whole system can be freely combined, extended and rearranged according to workshop layout and production processes, perfectly adapting to flexible and changing production requirements.
-
02
Light Weight & Smooth Ergonomic Operation High-strength aluminum alloy/steel profile features light weight and high rigidity. Low running resistance ensures effortless manual movement and stable variable-frequency electric operation. Accurate positioning effectively improves workshop handling efficiency and reduces labor intensity.
Where it is used
- Mechanical Processing Workshop Parts assembly, tool replacement, small workpiece lifting and short-distance material transfer.
- Automobile & New Energy Industry Production line auxiliary handling, component installation and standardized cycle operation.
- Electronic & Precision Manufacturing Precision parts hoisting, clean workshop handling with stable and low-noise operation.
- Warehouse & Logistics Sorting Light cargo picking, goods stacking and flexible indoor material turnover.
- Equipment Maintenance Field Mechanical overhaul, mold disassembly and portable short-distance lifting work.
