Jib Cranes

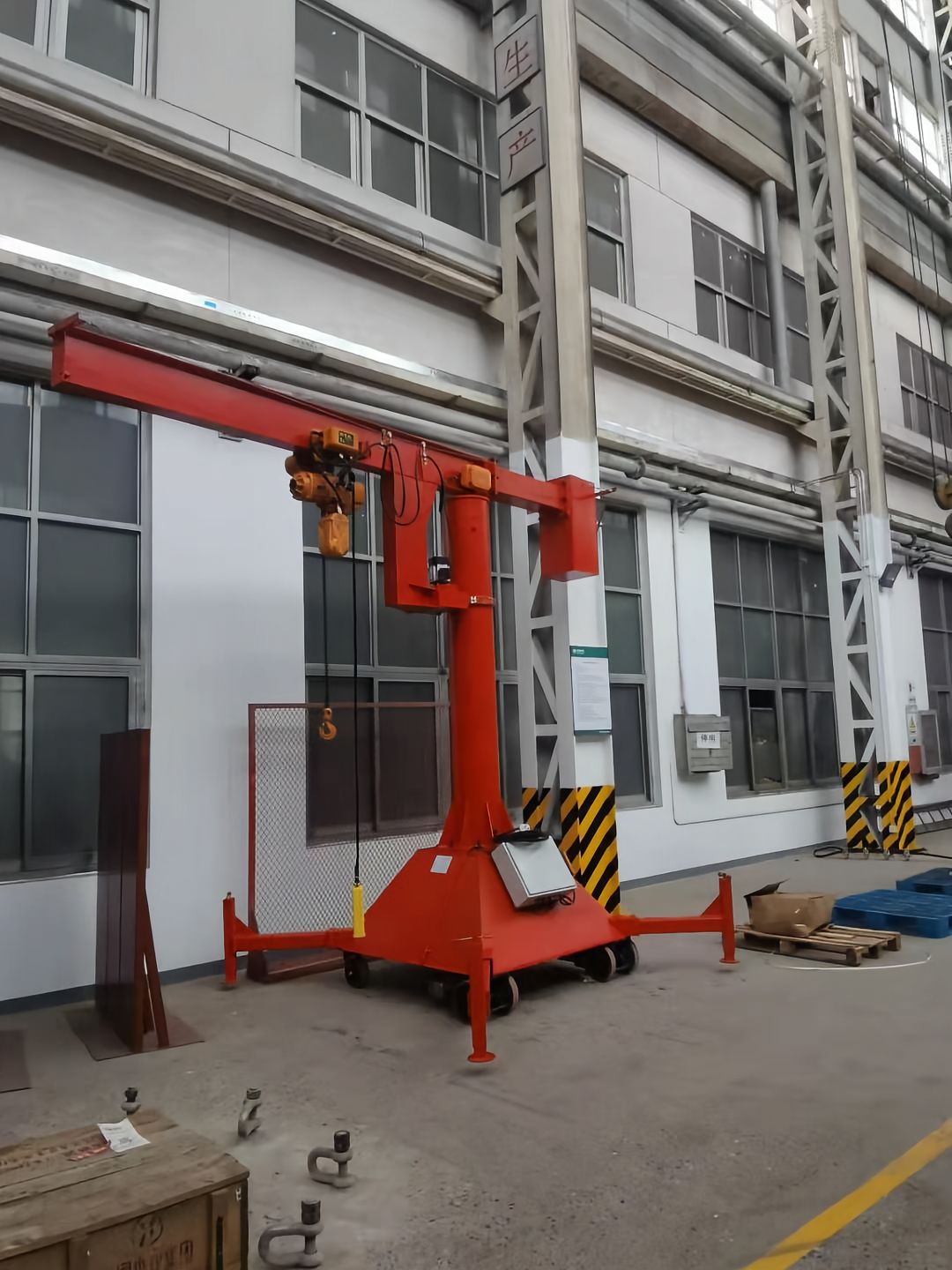

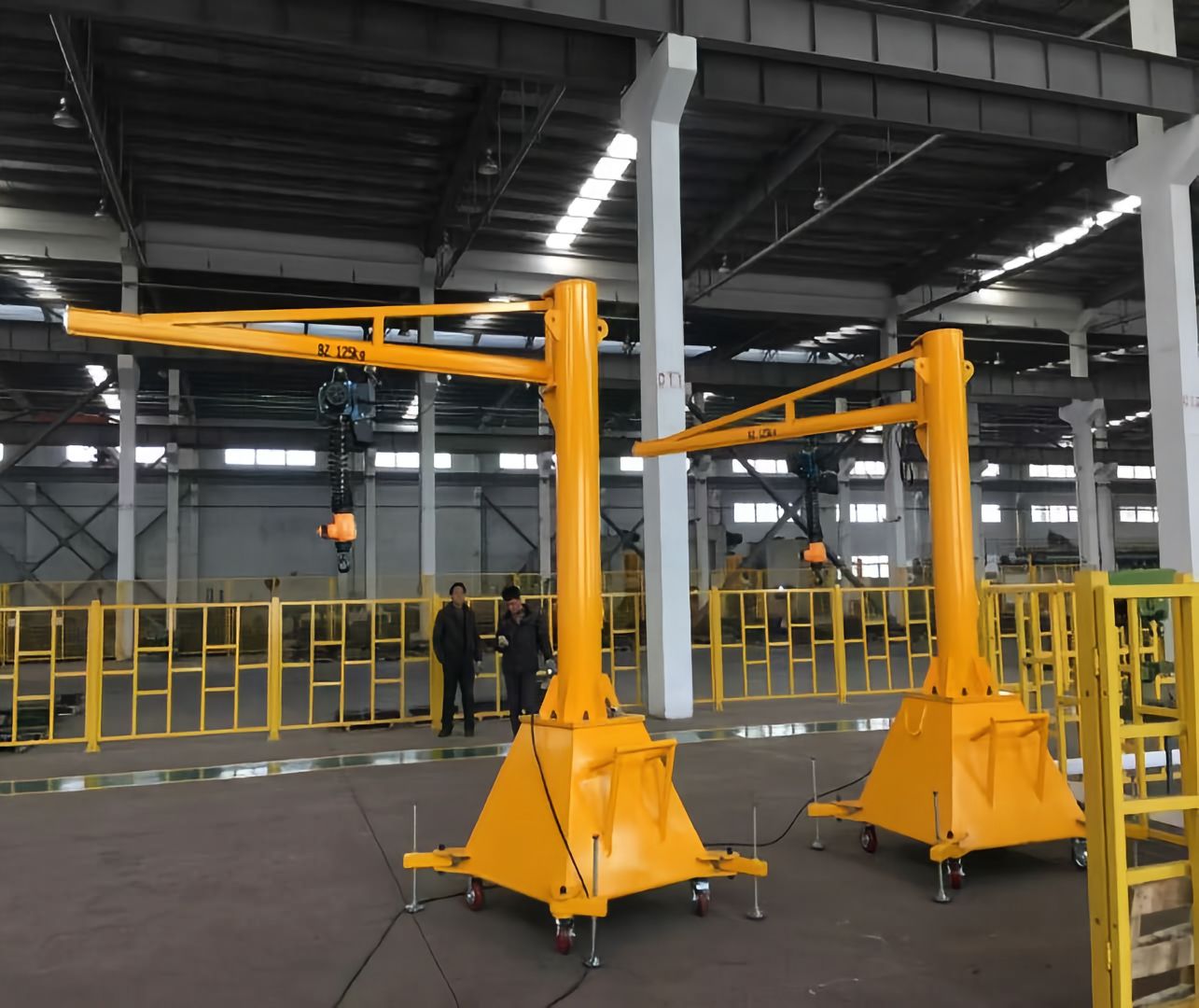

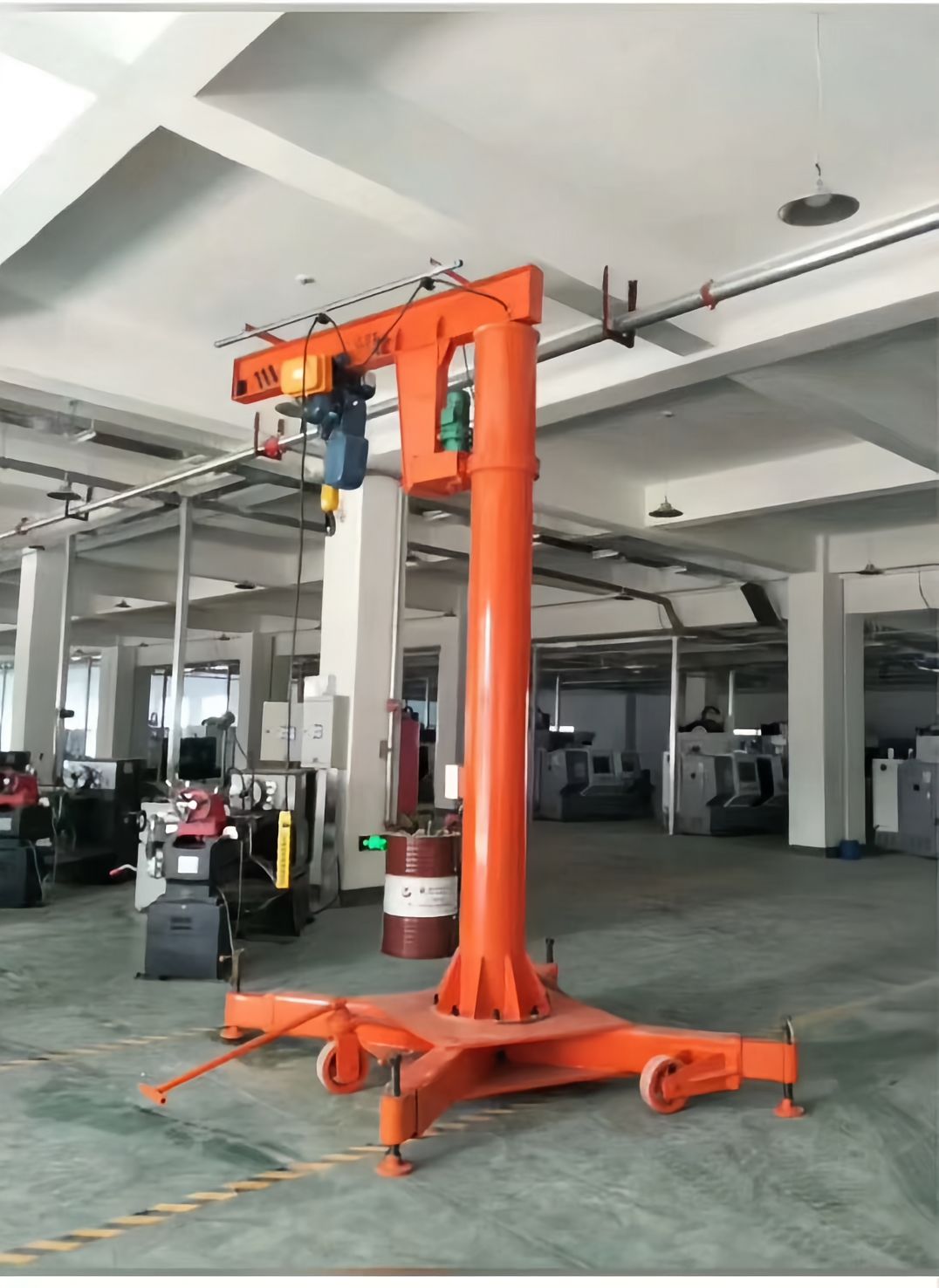

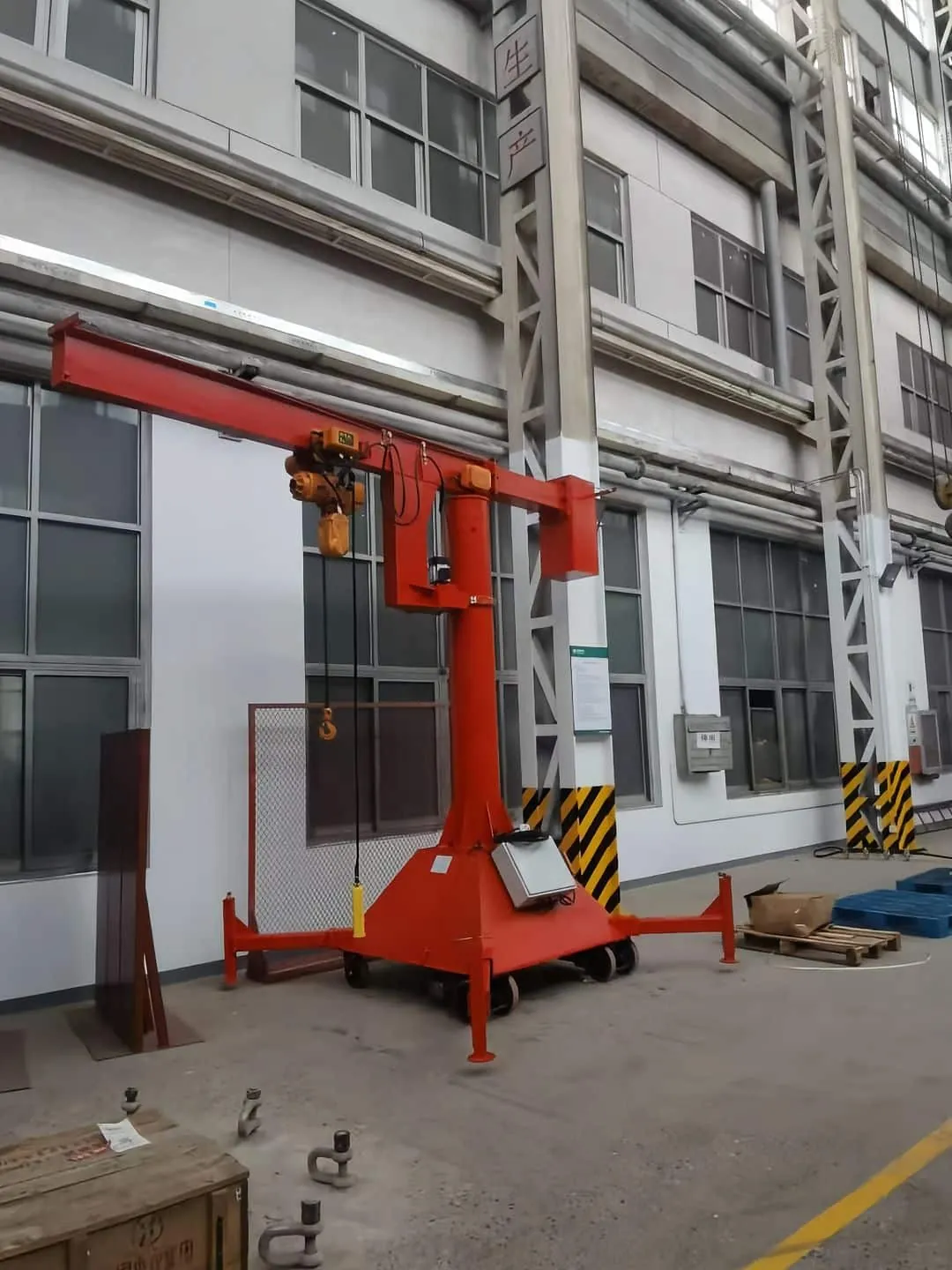

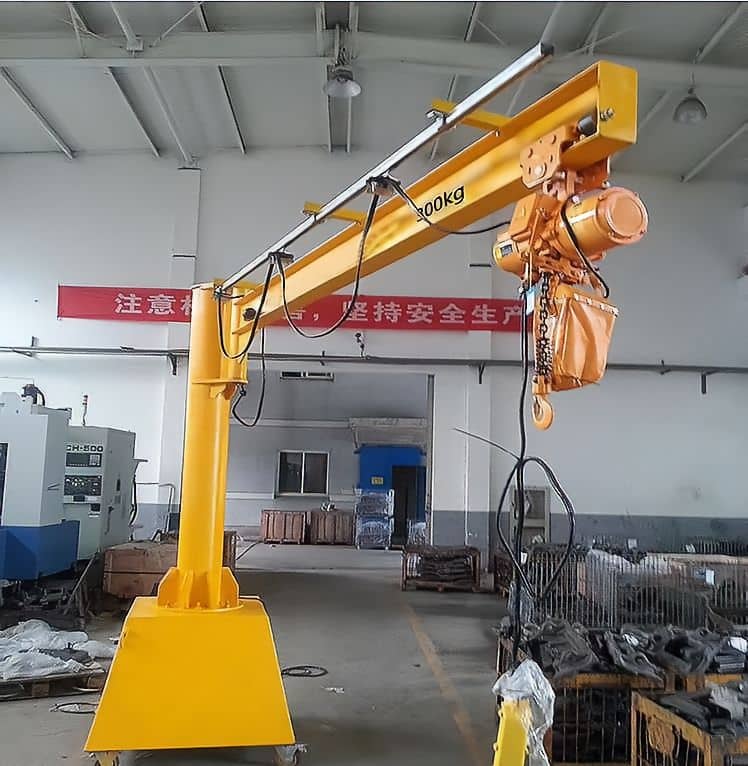

Mobile Jib crane
Portable mobile jib crane with movable base, no fixed foundation needed. Flexible small-scale hoisting for scattered workstations, convenient relocation inside African workshops.
Specification
Technical parameters
| Item | Unit | 0.5t | 1t | 2t | 3t | 5t | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting capacity | t | 0.5 | 1 | 2 | 3 | 5 | ||||||||||
| Lifting height h | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 | ||
| Valid radius R | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 | ||
| Working system | - | A3 (intermediate) | ||||||||||||||
| Speed | Hoisting | Slow speed | m/min | 0.8 | ||||||||||||
| Normal speed | m/min | 8 | ||||||||||||||
| Slewing speed | r/min | 0.7 | 0.5—1 | |||||||||||||
| Circulate speed | m/min | 20 | ||||||||||||||
| Slewing angle | ° | 180°, 270°, 360°, Optional | ||||||||||||||
| Max. height H | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 5.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 | ||
| Max. length L | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 | ||
| Total weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4860 | 5080 | ||
Non-standard span, capacity and duty class are made to order.
Overview
Mobile Jib crane
A portable slewing jib crane with outstanding mobility and universal adaptability. It is an essential standalone emergency lifting device for high-efficiency automated production lines to guarantee smooth manufacturing processes. Suitable for small equipment installation and cargo/workpiece handling in factories, mines, workshops, outdoor yards and warehouses, as well as low-rise construction sites where overhead bridge cranes cannot be arranged.
Key features
-
01
360-Degree Full Rotation The jib arm supports 360° free rotation, covering a wide working area without dead angles, ideal for material handling at scattered workstations.
-
02
Movable Flexible Structure Equipped with heavy-duty lockable casters on the base. The whole crane can be pushed to any production area conveniently, no fixed foundation required, greatly improving site utilization.
-
03
Space-Saving Compact Layout Small footprint design, perfectly suitable for small workshops, warehouses and temporary construction sites with limited space.
-
04
Stable & Efficient Lifting Performance Matched with high-quality electric wire rope hoist, featuring steady lifting speed, smooth operation, low vibration and low working noise to improve working efficiency.
-
05
Customizable Specifications Load capacity, lifting height and jib length can be customized to match different lifting requirements of metal processing, machinery assembly and logistics industries.
-
06
Complete Multi-Safety Devices Built-in overload protection device, emergency stop switch and travel limit switch to prevent over-lifting and accidental risks, ensuring long-term safe operation.
Where it is used
- Machining workshops Hoist molds, metal blanks and finished workpieces for lathes, milling and cutting equipment
- Assembly lines Precise lifting and positioning of mechanical components for repeated assembly work
- Welding & fabrication stations Transfer and flip metal workpieces for welding, polishing and surface treatment
- Parts storage warehouses Short-distance sorting, stacking and handling of raw materials and spare parts
- Leased factories & outdoor maintenance yards Sites lacking load-bearing walls or temporary processing areas
- Small and medium processing cells Centralized light to medium tonnage lifting for compact workstation
