Jib Cranes

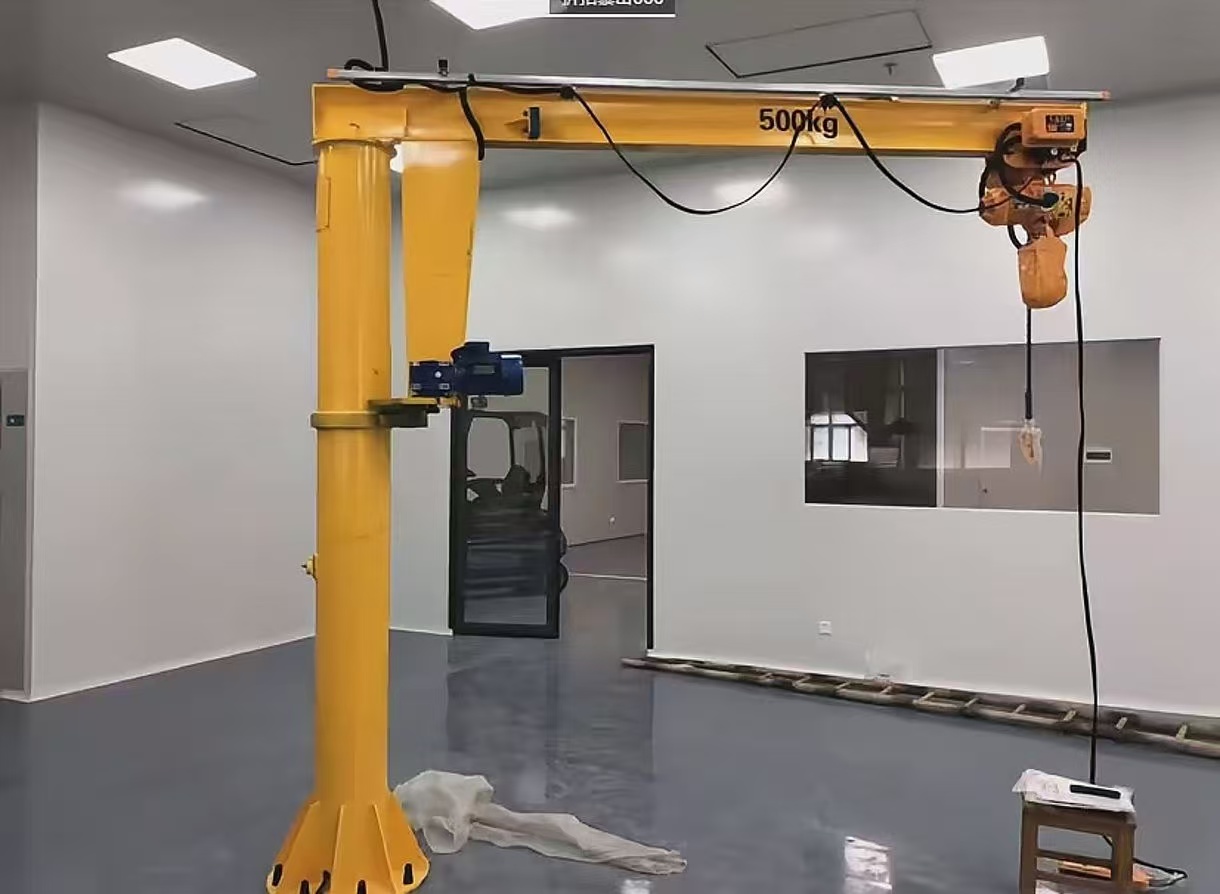

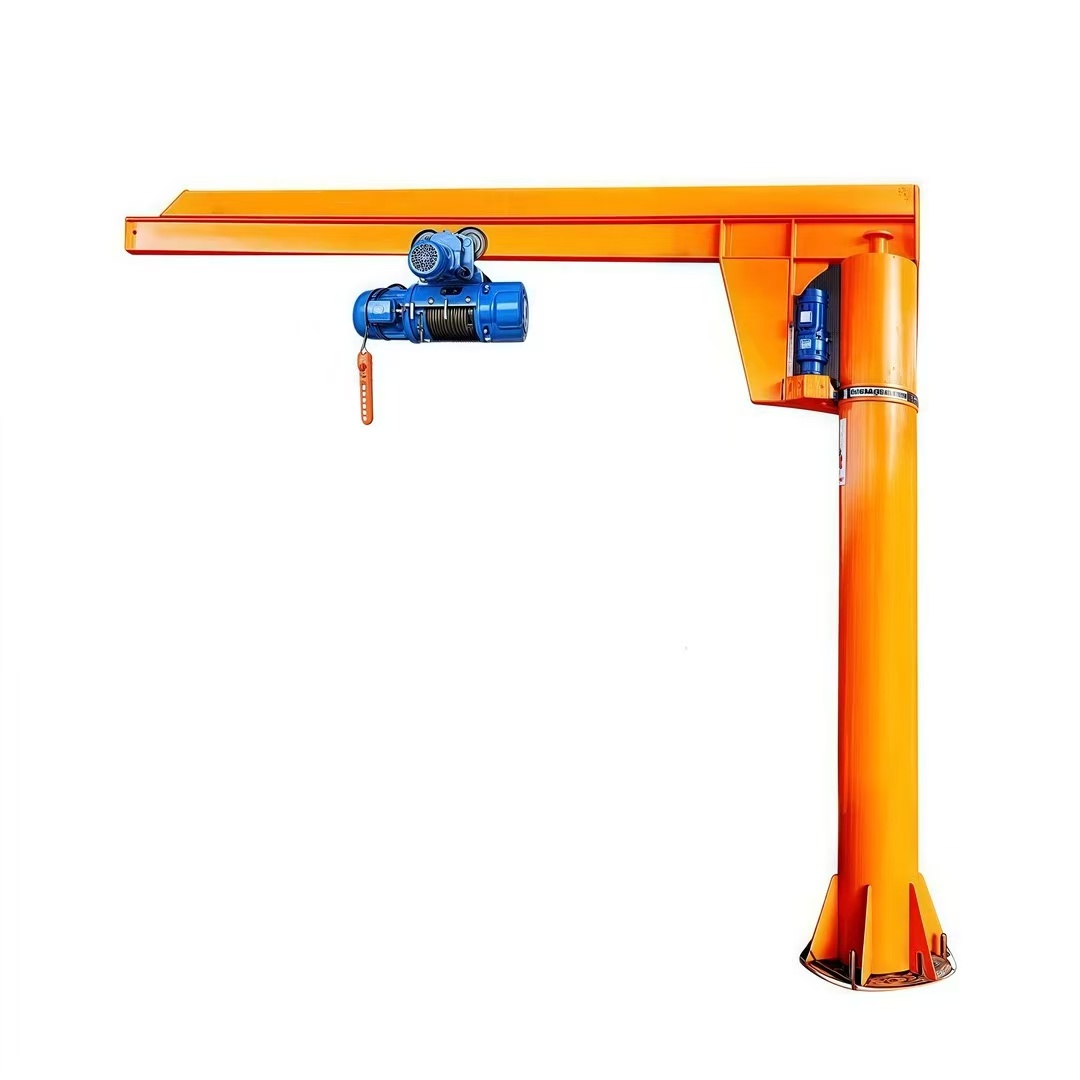

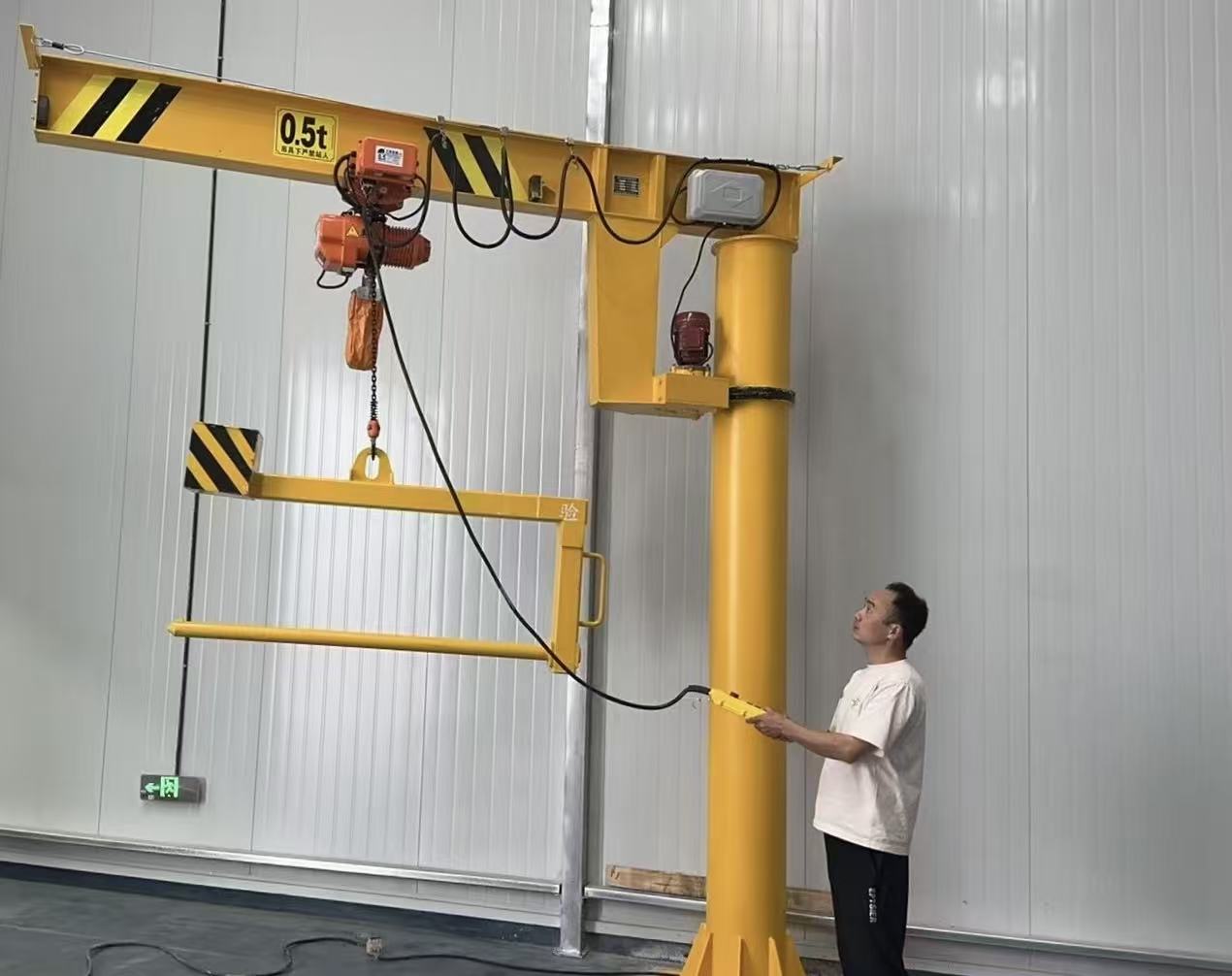

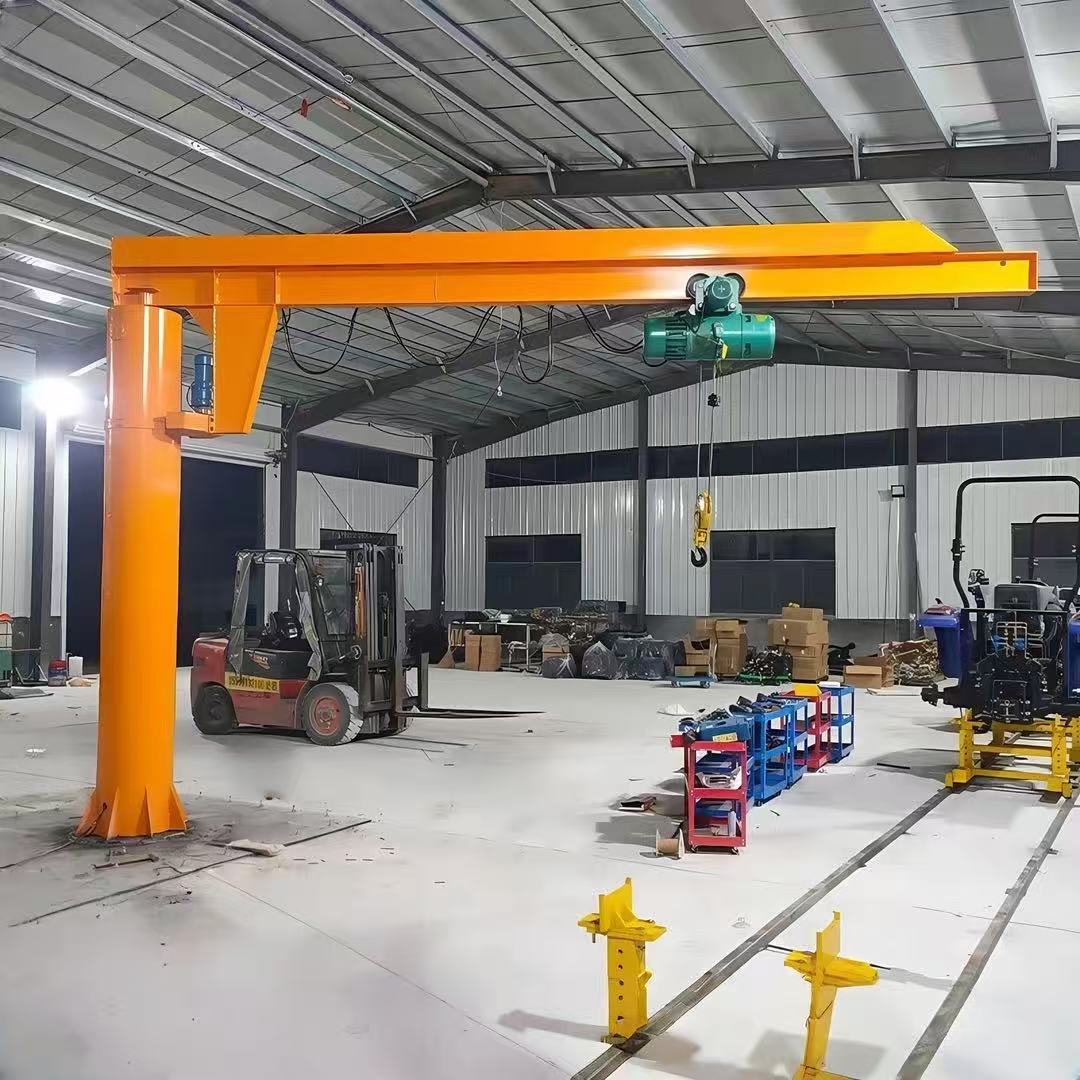

Floor Mounted Free-Standing Pillar Mounted Jib Crane
Floor mounted free-standing pillar jib crane, 0.5–5 t, working radius 4–5.5 m, lifting height 4–6 m. Bolts to a concrete foundation; 180°, 270° or 360° slewing.
Specification
Technical parameters
| Item | Unit | 0.5t | 1t | 2t | 3t | 5t | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting capacity | t | 0.5 | 1 | 2 | 3 | 5 | ||||||||||
| Lifting height h | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 | ||
| Working radius R | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 | ||
| Duty class | A3 (intermediate) | |||||||||||||||
| Speed | Hoisting | Slow speed | m/min | 0.8 | ||||||||||||
| Normal speed | m/min | 8 | ||||||||||||||
| Slewing speed | r/min | 0.7 | 0.5—1 | |||||||||||||
| Trolley travel speed | m/min | 20 | ||||||||||||||
| Slewing angle | ° | 180°, 270°, 360°, Optional | ||||||||||||||
| Max. height H | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 5.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 | ||
| Max. length L | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 | ||
| Total weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4860 | 5080 | ||
Non-standard capacity, arm length and lifting height are made to order.
| Item | Unit | 0.5t | 1t | 2t | 3t | 5t | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting capacity | t | 0.5 | 1 | 2 | 3 | 5 | ||||||||
| Lifting height h | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 |
| Working radius R | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 |
| Duty class | A3 (intermediate) | |||||||||||||
| Speed · Hoisting Slow speed | m/min | 0.8 | ||||||||||||
| Speed · Hoisting Normal speed | m/min | 8 | ||||||||||||
| Speed Slewing speed | r/min | 0.7 | 0.5—1 | |||||||||||
| Speed Trolley travel speed | m/min | 20 | ||||||||||||
| Slewing angle | ° | 180°, 270°, 360°, Optional | ||||||||||||
| Max. height H | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 5.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 |
| Max. length L | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 |
| Total weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4860 | 5080 |
Non-standard capacity, arm length and lifting height are made to order.
Overview
Floor Mounted Free-Standing Pillar Mounted Jib Crane
Floor-mounted freestanding jib cranes are multi-purpose lifting equipment engineered for stable service in tough industrial working conditions. This pillar jib crane needs no wall or overhead beam support and bolts directly to concrete foundations without altering the original factory structure, which suits workshops with insufficient overhead space or load-bearing walls.
It is built with a heavy-wall structural steel mast and a reinforced large-diameter base plate to reduce deflection and keep consistent alignment. The jib is a rolled steel I-beam with tapered flange for smooth trolley movement, fitted with safety end stops on both ends of the boom to restrict trolley travel. With a rigid box-type head section and heavy-duty gussets, the floor mounted jib crane has a solid structure, outstanding durability and a long service life. Our team can customize matching lifting solutions to fit your operation.
Key features
-
01
Fully Independent Floor-Mounted Structure Self-supporting pillar design works for plants without overhead supporting structures. No reconstruction of building infrastructure required, flexible to rearrange production layout.
-
02
Robust Heavy-Duty Steel Structure Thick steel mast, reinforced base plate and heavy gussets effectively lower mast deformation; rigid box head and tapered-flange I-beam guarantee smooth trolley running, paired with adjustable lower roller cage for optimized travel experience.
-
03
Reliable Built-In Safety Design Safety end stops installed on two sides of the jib prevent trolley overtravel; matched with complete lifting safety accessories to avoid overload and falling risks during operation.
-
04
Wide Customizable Specifications Standard models lift 0.5 t to 5 t with a working radius of 4 m to 5.5 m (see the parameter table); other lifting heights and jib lengths are built to order.
-
05
Excellent Durability & Low Maintenance Integrated welded steel structure resists heavy continuous workloads. Standardized spare parts are easy to replace, cutting long-term maintenance costs and downtime.
Where it is used
- Machining workshops Hoist molds, metal blanks and finished workpieces for lathes, milling and cutting equipment

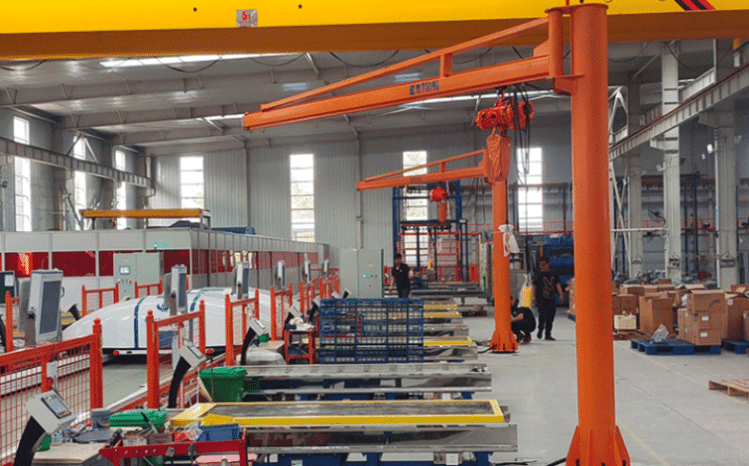

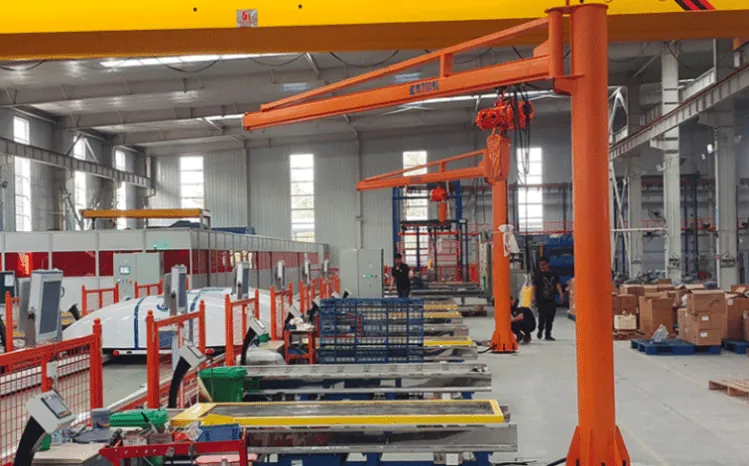

- Assembly lines Precise lifting and positioning of mechanical components for repeated assembly work
- Welding & fabrication stations Transfer and flip metal workpieces for welding, polishing and surface treatment
- Parts storage warehouses Short-distance sorting, stacking and handling of raw materials and spare parts
- Leased factories & outdoor maintenance yards Sites lacking load-bearing walls or temporary processing areas
- Small and medium processing cells Centralized light to medium tonnage lifting for compact workstation
