Wall mounted Jib crane
Find the direct facatory for the Manufacturer Customization Wall mounted Jib crane, we can offer the worldwide free shipping with best quality and price
Specification
Technical parameters
| Item | Unit | 0.5t | 1t | 2t | 3t | 5t | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting capacity | t | 0.5 | 1 | 2 | 3 | 5 | ||||||||||
| Lifting height h | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 | ||
| Valid radius R | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 | ||
| Working system | - | A3 (intermediate) | ||||||||||||||
| Speed | Hoisting | Slow speed | m/min | 0.8 | ||||||||||||
| Normal speed | m/min | 8 | ||||||||||||||
| Slewing speed | r/min | 0.7 | 0.5—1 | |||||||||||||
| Circulate speed | m/min | 20 | ||||||||||||||
| Slewing angle | ° | 180°, 270°, 360°, Optional | ||||||||||||||
| Max. height H | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 5.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 | ||
| Max. length L | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 | ||
| Total weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4860 | 5080 | ||
Non-standard span, capacity and duty class are made to order.
Overview

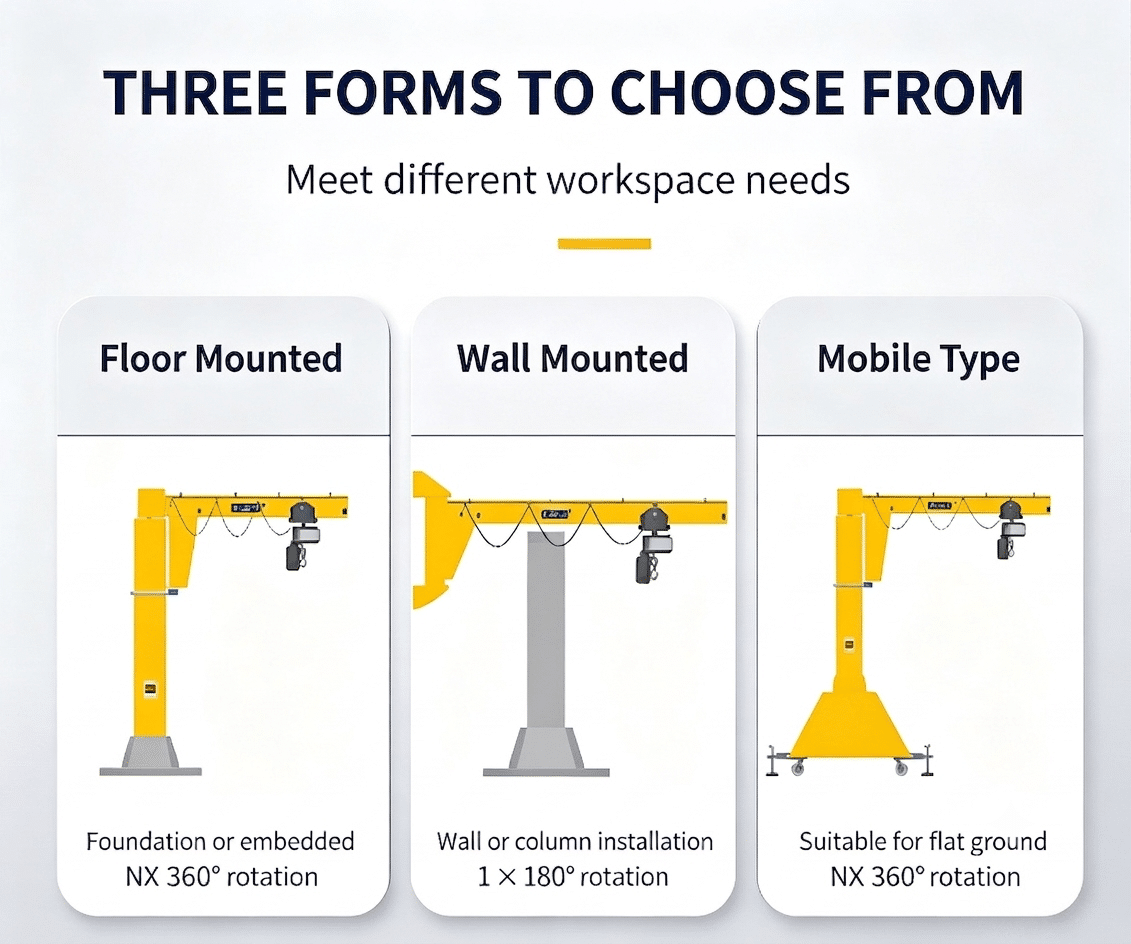

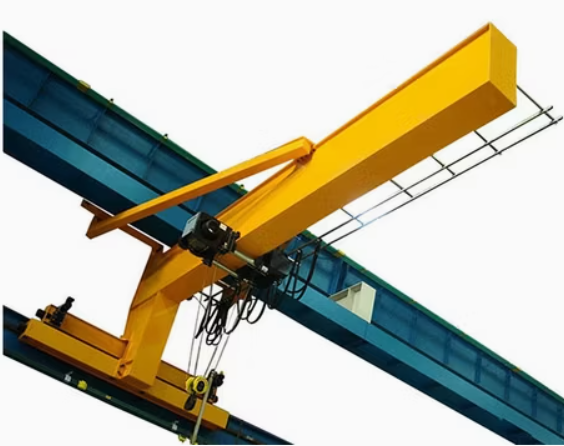

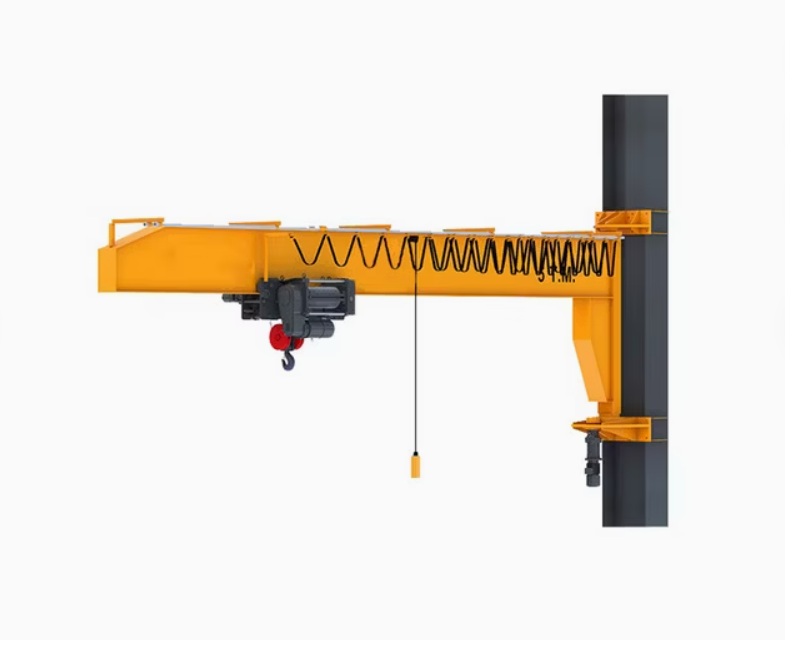

Wall mounted Jib crane

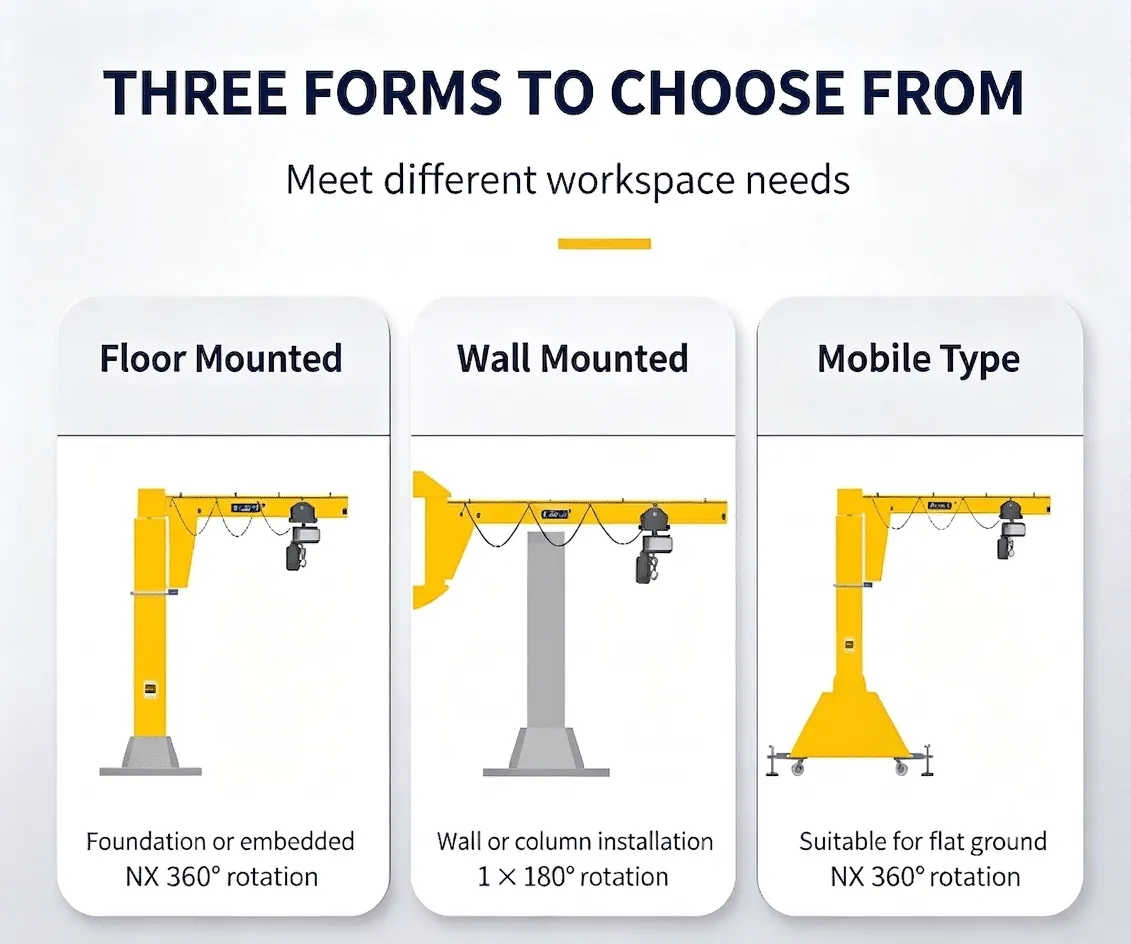

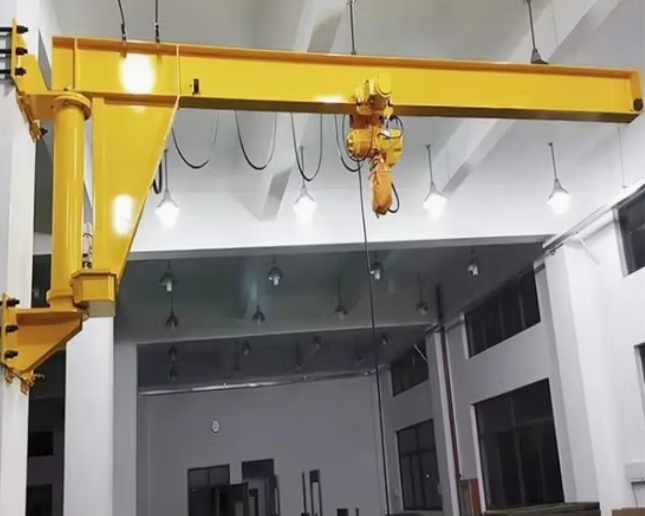

Custom special lifting equipment tailored to site demands. Its core advantage is flexible installation: it can be mounted directly on section steel, concrete pillars, wall surfaces or self-standing machines based on existing site conditions without occupying floor space. It delivers all the functions of floor-mounted jib cranes at a more cost-effective price. Widely used for heavy load lifting in factories, mines, workshop production/assembly lines, machine tool loading/unloading, warehouses and docks.
Key features
-
01
Fully Independent Floor-Mounted Structure Self-supporting pillar design works for plants without overhead supporting structures. No reconstruction of building infrastructure required, flexible to rearrange production layout.
-
02
Robust Heavy-Duty Steel Structure Thick steel mast, reinforced base plate and heavy gussets effectively lower mast deformation; rigid box head and tapered-flange I-beam guarantee smooth trolley running, paired with adjustable lower roller cage for optimized travel experience.
-
03
Reliable Built-In Safety Design Safety end stops installed on two sides of the jib prevent trolley overtravel; matched with complete lifting safety accessories to avoid overload and falling risks during operation.
-
04
Wide Customizable Specifications Max lifting capacity reaches 5 Tons; custom lifting heights and jib spans are available up to 25 feet to satisfy diverse workstation lifting demands.
-
05
Excellent Durability & Low Maintenance Integrated welded steel structure resists heavy continuous workloads. Standardized spare parts are easy to replace, cutting long-term maintenance costs and downtime.
Where it is used
- Machining workshops Hoist molds, metal blanks and finished workpieces for lathes, milling and cutting equipment
- Assembly lines Precise lifting and positioning of mechanical components for repeated assembly work
- Welding & fabrication stations Transfer and flip metal workpieces for welding, polishing and surface treatment
- Parts storage warehouses Short-distance sorting, stacking and handling of raw materials and spare parts
- Leased factories & outdoor maintenance yards Sites lacking load-bearing walls or temporary processing areas
- Small and medium processing cells Centralized light to medium tonnage lifting for compact workstation
