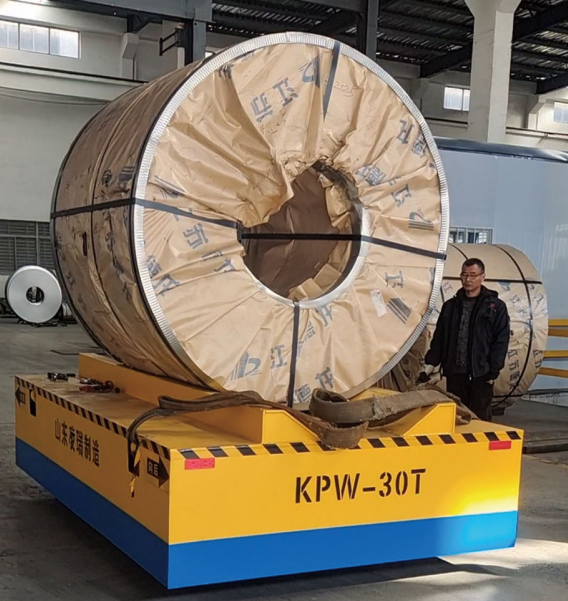

Special Coil Transfer Cart

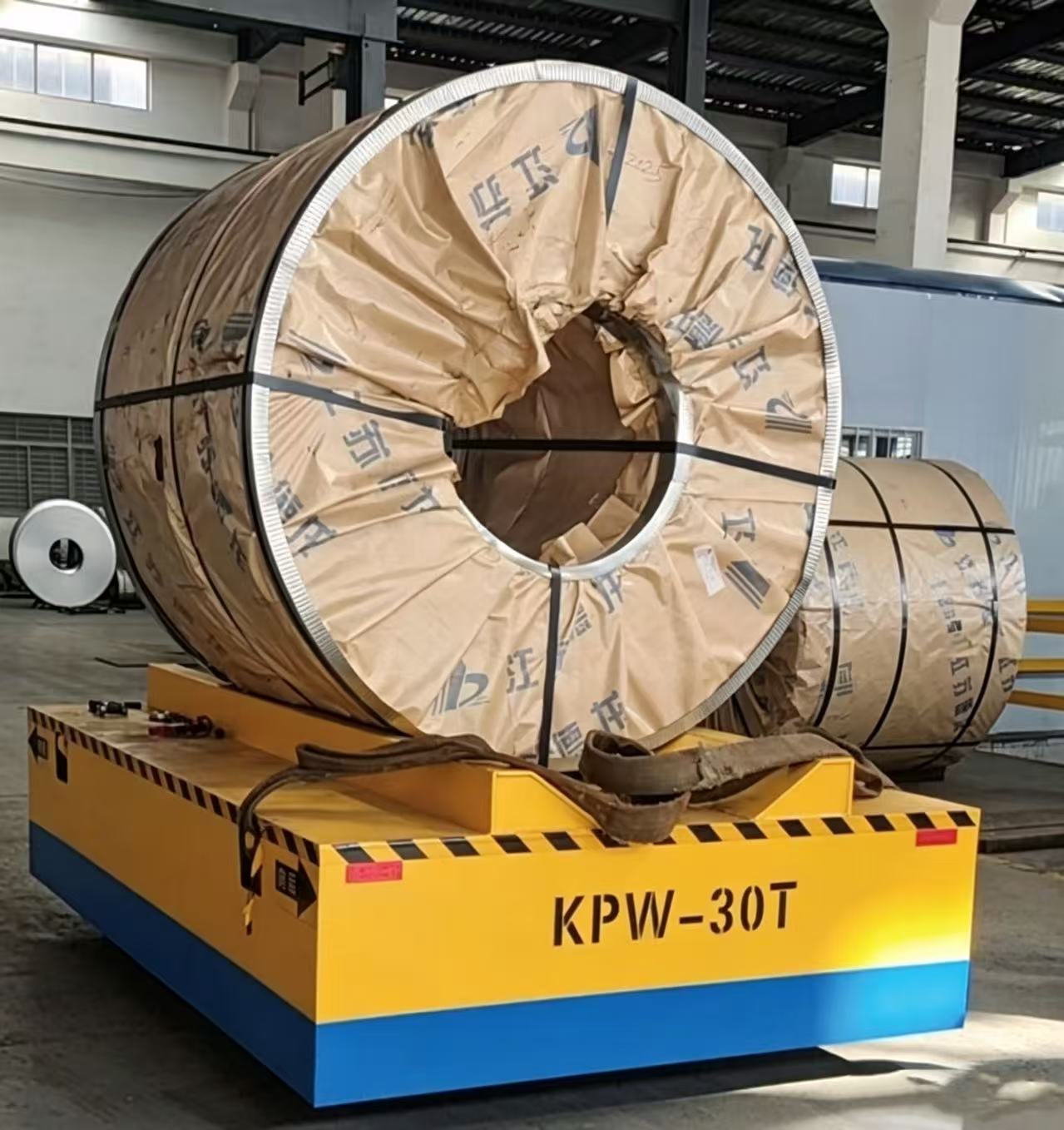

The Coil Transfer Cart is dedicated material handling equipment designed for transporting steel coils, aluminum coils, iron coils and other rolled materials. This coil transport flat car is fitted with a U-shaped support fixture on the platform. The fixture effectively stops steel coils, aluminum coils and other rolled products from rolling, securing cargo stability and guaranteeing transportation safety.
The cart supports multiple power supply modes: battery power, low-voltage rail power and cable reel power. Its driving motor is regulated by a DC controller or frequency inverter, which avoids excessive starting current and abrupt speed surges that may cause coil displacement. This design extends motor service life and enables safe, effortless transportation of steel coils.

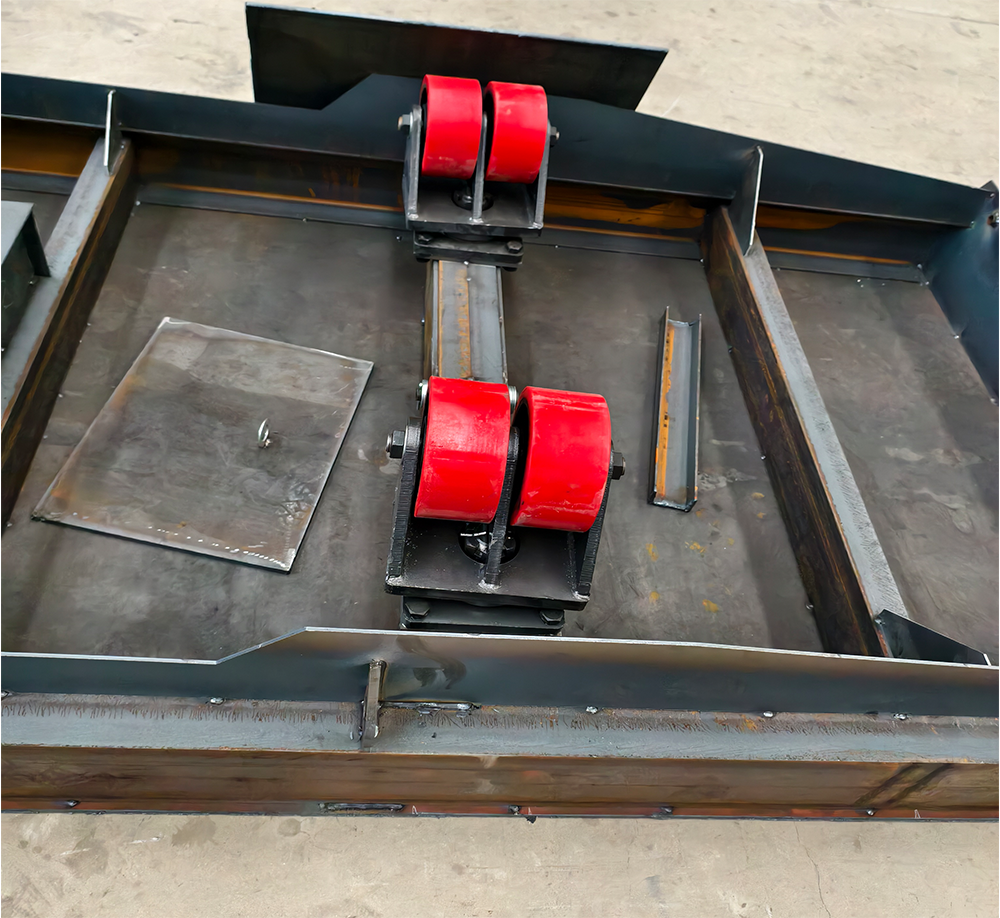

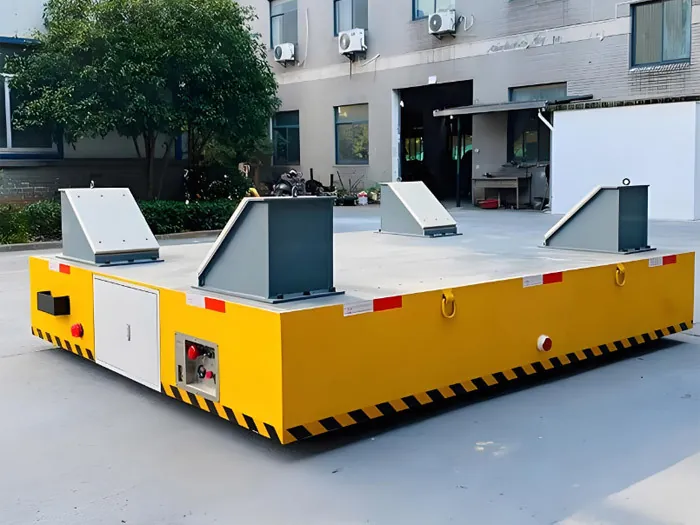

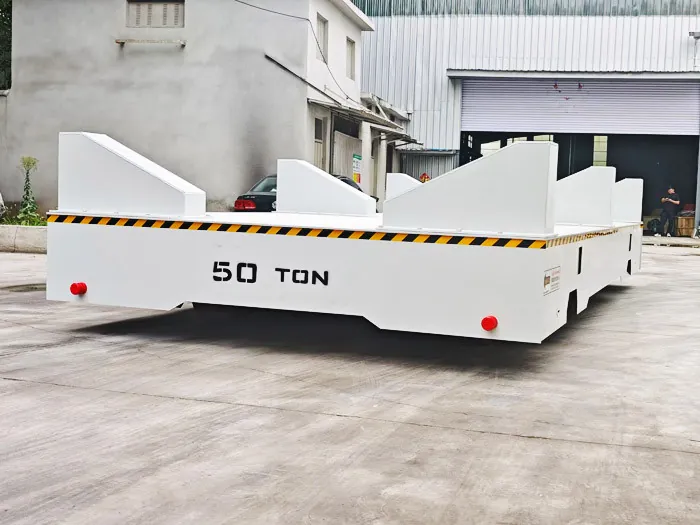

Custom U-shaped Anti-roll Bracket
Equipped with U-shaped fixture on platform, effectively lock steel coils, aluminum coils and rolled materials to prevent rolling during transit.
Multiple Optional Power Supply Modes
Available with battery power, low-voltage rail power and cable reel power, adapting to different site distances and working frequency.
Smooth Variable Speed Control
DC controller or frequency converter control, soft start, no sudden acceleration, reduce coil sliding risks.
Long Motor Service Life
Restrict excessive starting current to protect driving motor and lower failure rate.
Professional For Coil Handling
Specially engineered for steel coil, aluminum coil, iron coil and other rolled profile transportation, widely used in metallurgy, steel mills and processing workshops.
Parameter
| Model | KPW-2T | KPW-10T | KPW-16T | KPW-30T | KPW-50T | KPW-80T | KPW-100T |
|---|---|---|---|---|---|---|---|
| Table Size (m) | 2.0*1.5*0.45 | 2.3*2.0*0.55 | 4*2*0.6 | 3.5*2.2*0.7 | 5.5*2.6*0.8 | 6.5*2.8*0.95 | 6.6*3.0*1.2 |
| Power Supply | Maintenance Free Battery | ||||||
| Wheel Base (m) | 1.08 | 1.65 | 1.7 | 1.65 | 2 | 1.95 | 2 |
| Wheel Dia. (m) | 0.25 | 0.35 | 0.4 | 0.45 | 0.6 | 0.6 | 0.6 |
| Running Speed (m/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 |
| Motor Power (kw) | 1 | 1.6 | 2 | 3.5 | 5 | 8 | 10 |
| Battery Capacity (Ah) | 250 | 250 | 250 | 450 | 500 | 800 | 1000 |
| Battery Voltage (v) | 24 | 48 | 48 | 48 | 48 | 72 | 72 |
| Max Wheel Load (Kn) | 14.4 | 42.6 | 64.5 | 110.4 | 174 | 185 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.5 | 6.8 | 8 | 14.6 | 26.8 |
Four Power Supply Modes of Rail Transfer Cart
We provide four mainstream power supply modes for rail transfer carts to suit different site distances, working frequencies and environmental requirements. Each power type is mature, stable and widely applied in industrial material handling.

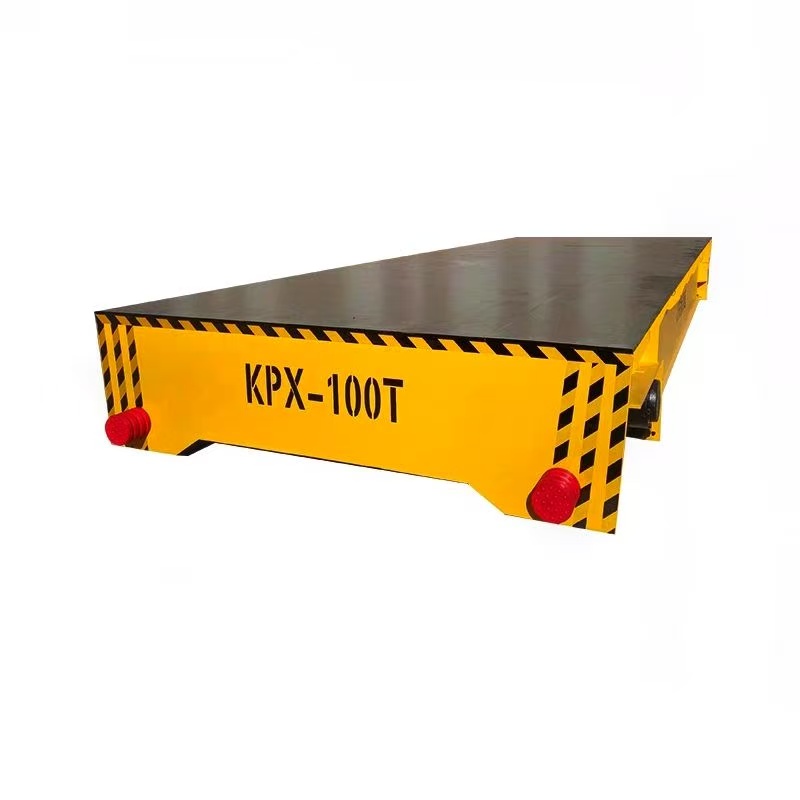

1. Battery Powered (KPX Series)
Adopts built-in battery pack for independent power supply. The cart operates freely with no traveling distance limit and no external cables required. It features flexible movement, easy layout and strong adaptability. It is the optimal choice for long-distance transportation, irregular running routes, and explosion-proof, flammable and explosive working environments.
2. Cable Reel Powered (KPT Series)
Equipped with an automatic cable reel to realize self-winding and unwinding during operation. This power mode provides continuous and stable voltage output with low failure rate and no charging waiting time. It is mainly applicable for short and medium-distance fixed-track transportation and high-frequency continuous operation.
3. Sliding Line Powered (KPJ Series)
Powered by sliding contact wire for real-time continuous power supply. It supports 24-hour non-stop operation without battery charging restriction. With stable power output and high working efficiency, it is widely used for factory fixed routes, high-frequency and long-time continuous handling conditions.
4. Low-Voltage Rail Powered (KPD Series)
Adopts 36V/48V safe low-voltage power supply through rails. No external cables are needed, making the site tidy and safe. This mode features excellent explosion-proof performance and strong load capacity, which is suitable for fixed-route heavy-duty transportation and standardized factory workshop handling scenarios
Widespread Application Scenarios
- Suitable for transporting steel coils, aluminum coils, paper rolls, metal pipes, plastic rollers, casting parts, stamping dies, large steel structural parts, precast concrete components and other heavy, long or cylindrical workpieces.
- Metallurgy & Steel Industry: Steel plants, ironworks, metal processing workshops, for transporting steel coils, steel ingots, steel plates, profiles and scrap steel.
- Machinery Manufacturing: Auto factories, heavy machinery workshops, mold workshops, machining plants for die turnover, large part cross-station transfer.
- Paper & Printing Mills: Transport paper rolls, pulp rolls and finished paper products.
- Shipbuilding Industry: Shipyards for transferring hull parts, steel plates, pipe fittings and cabin components.
- Construction & Prefabrication: Precast component factories, engineering bases for concrete blocks, steel beams and prefabricated wall panels.
- Painting & Coating Workshops: Cooperate with spraying lines to transfer workpieces without polluting power cables.
- Warehouse & Logistics: Large storage yards, port cargo areas, freight stations for pallet goods, heavy container and bulk material turnover.
- New Energy Industry: Wind power factories for wind shafts, battery factories for large raw material turnover.
- Chemical & Non-ferrous Metal Plants: Aluminum factories, copper processing workshops for aluminum coils, copper rolls and metal raw materials.
- Equipment Matching: Cooperate with overhead cranes and gantry cranes to realize cross-span heavy load transportation inside workshops.

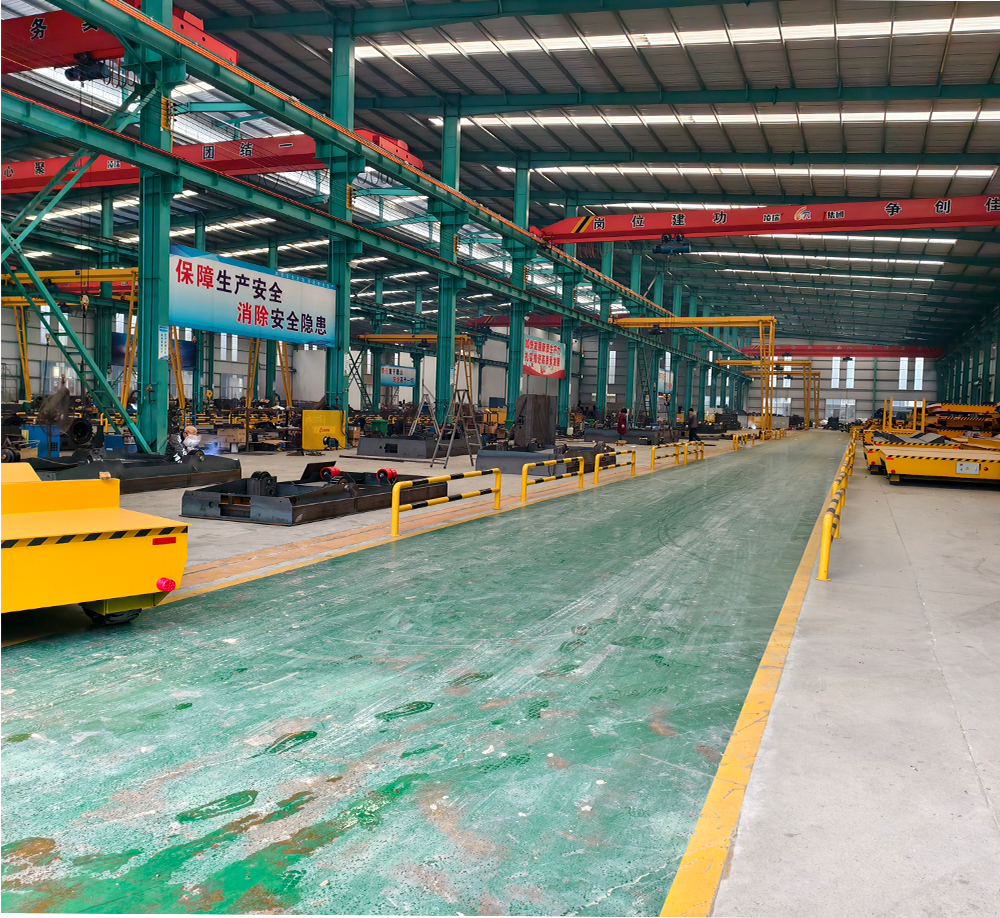

Work Shop
Frequently Asked Question
It transports heavy workpieces like coils, pipes and molds in factories, steel mills and logistics yards.
Trackless models move freely on flat concrete ground; rail-guided models require pre-laid rails. Both are suitable for indoor and outdoor use.
Standard load ranges from 5 to 100 tons; larger tonnage can be customized upon request.
