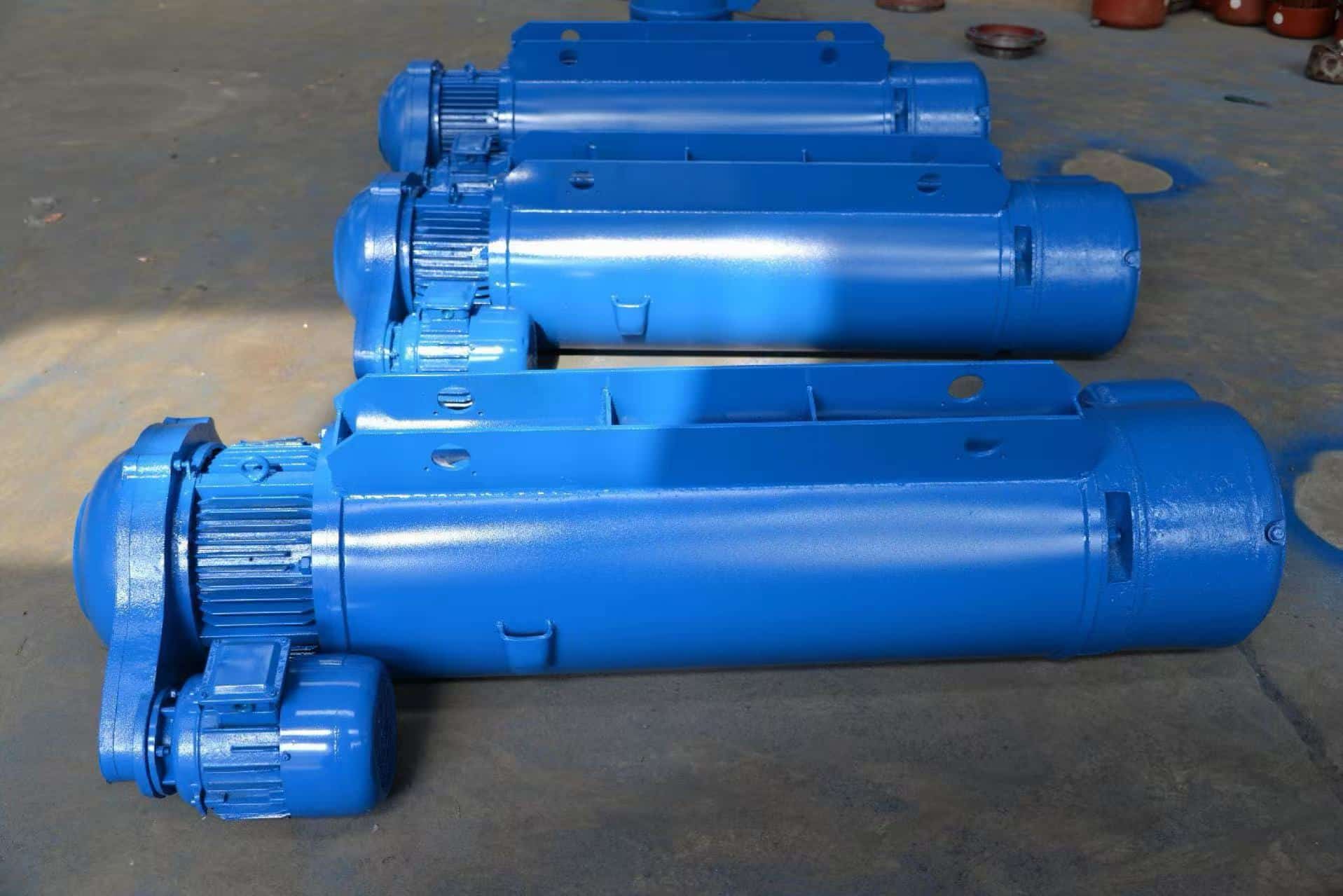

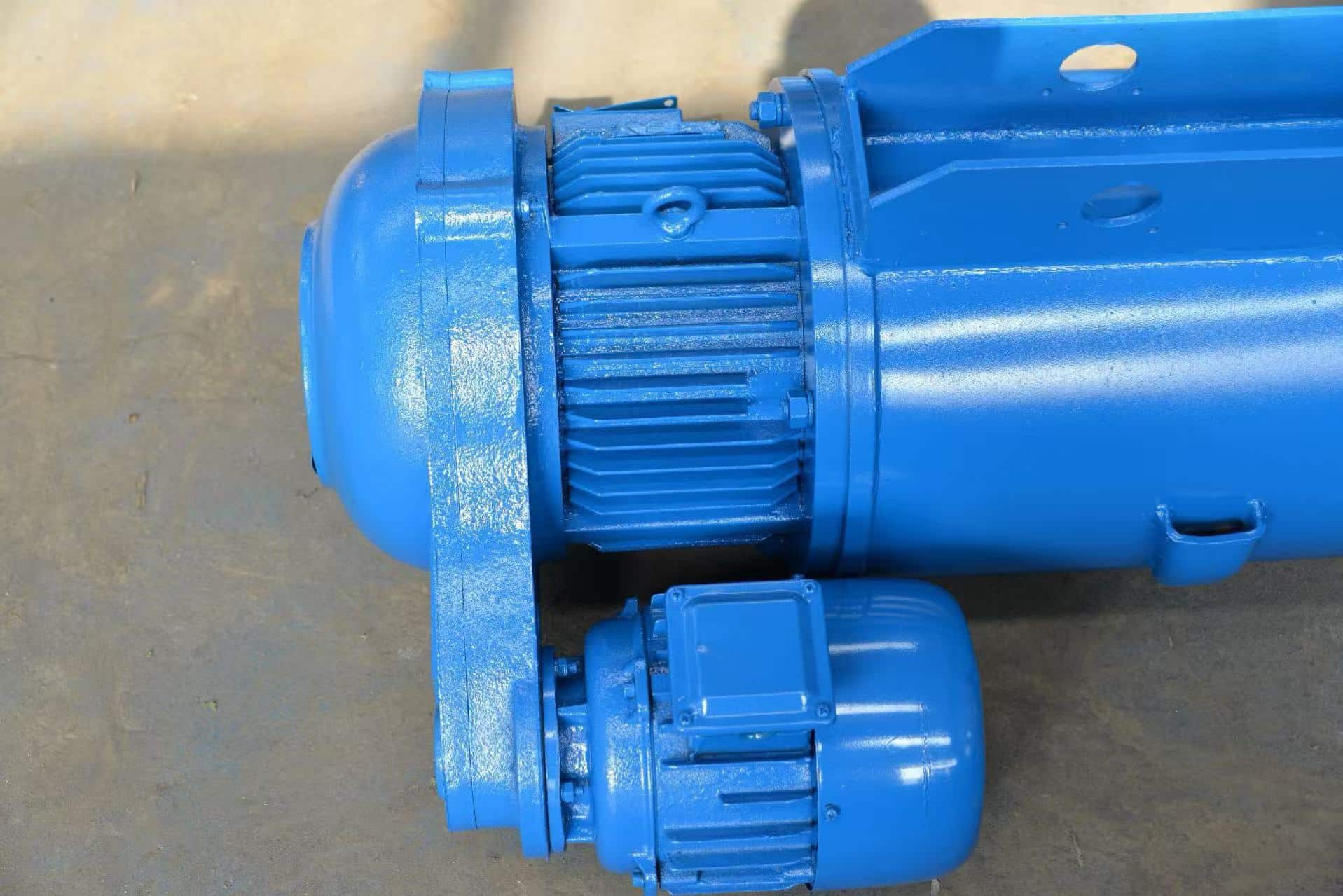

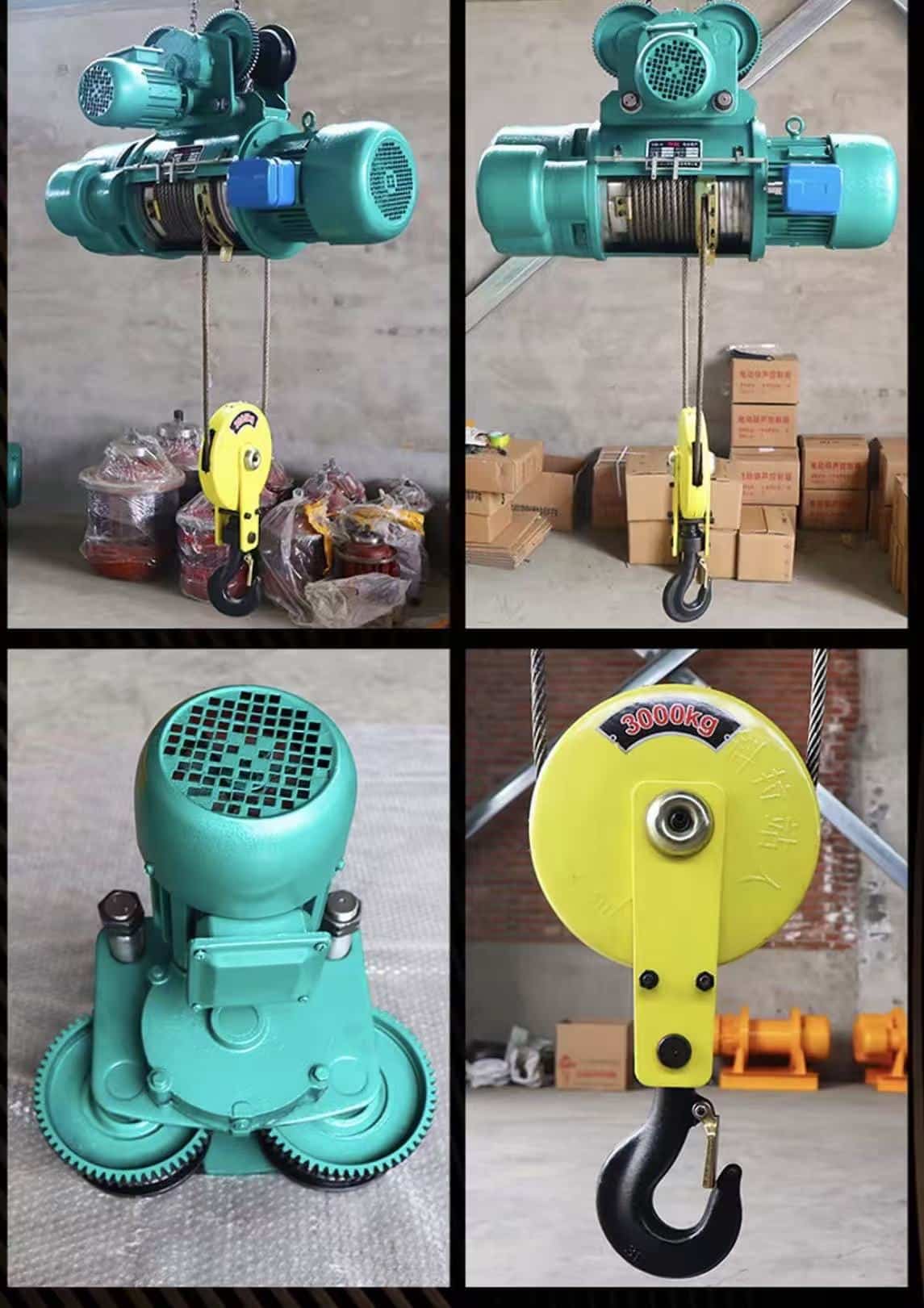

MD1 Double Speed Wire Rope Electric Hoist
MD1 double speed wire rope electric hoist features two lifting speeds for accurate positioning. Durable & low-failure lifting equipment ideal for factories, warehouses and construction projects in Africa.
Specification
Technical parameters
| Model | CD1/MD1 Type Wire Rope Electric Hoist | ||||||
|---|---|---|---|---|---|---|---|
| Lifting Capacity(Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Lifting Height(m) | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | |
| Lifting Speed(m/min) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 7(0.7) | |
| Traveling Speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 | |
| Wire Rope Diameter(mm) | 4.8 | 7.4 | 11 | 13 | 15.5 | 15.5 | |
| Min Radius of Circular Track(m) | 1.5 | 1.5-3.5 | 2-4 | 2-4 | 2-4 | 3-7.2 | |
| I-beam Track Model(GB706-65) | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | |
| Lifting Motor | Rated Power(kw) | 0.8 | 1.5 | 3.0 | 4.5 | 7.5 | 13 |
| Rated Speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | |
| Rated Current(A) | 2.2 | 4 | 7 | 10 | 16.5 | 28 | |
| Traveling Motor | Rated Power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 |
| Rated Speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
| Rated Current(A) | 0.7 | 0.7 | 1.3 | 0.3 | 2.2 | 2.2*2 | |
| Self Weight(kg) | 135-195 | 180-255 | 250-360 | 320-440 | 590-800 | 820-1125 | |
Non-standard span, capacity and duty class are made to order.
Overview
MD1 Double Speed Wire Rope Electric Hoist
The MD1 wire rope electric hoist is designed with dual lifting speeds: standard fast speed and precision slow speed, perfectly solving the positioning difficulty of single-speed hoists during precise lifting.
With compact layout, lightweight body and small footprint, this hoist delivers easy daily operation and stable long-term running performance.
Where it is used
- Machinery & Warehouse Logistics Production line assembly, mold replacement, cargo stacking and cross-floor goods transfer in factories and storage warehouses.
- Construction & Municipal Engineering Steel frame installation, building material hoisting, pipeline and municipal facility mounting for construction sites.
- Metallurgy & Chemical Industry High-temperature workpiece transportation in steel mills, safe lifting of raw materials in flammable and explosive chemical workshops.
- New Energy & Mining Wind turbine maintenance, photovoltaic bracket installation, and underground equipment handling in mining operations.
- Port & Clean Workshop Small cargo loading at freight terminals, dust-free lifting for electronic, medical and new material precision workshops.
