Electric Wire Rope Hoist
HC Square Box Heavy Duty Electric Hoist
HC square-box heavy-duty electric wire rope hoist, 16–50 t, lifting height 9–48 m, duty class M3–M6. Pairs with double girder and gantry cranes.
Specification
Technical parameters
| Technical Item | 16t | 20t | 25t | 32t | 50t | |
|---|---|---|---|---|---|---|
| Rated capacity (t) | 16 | 20 | 25 | 32 | 50 | |
| Lifting Height (m) | 9,12,16,18,20,24,30,35,40,45,48 | 9,12,16,18,20,24 | 9,12,16,18,20,24 | 9,12,16,18,20,24 | 9,12,16,18,20,24 | |
| Lifting Speed (m/min) | 6(0.6)/8(0.8) | 3.5(0.3)/4(0.4) | 2.4(0.24)/3(0.3) | 2.4(0.24)/3(0.3) | 2.4(0.24) | |
| Travelling Speed (m/min) | 24×2 | 24×2 | 24×2 | 24×2 | 24×2 | |
| Wire Rope | Diameter (mm) | 20 | 20 | 20 | 26 | 26 |
| Structure | 6×37+1 | 6×37+1 | 6×37+1 | 6×19+1 | 6×19+1 | |
| I-beam Track Model (GB706-88) | 50a~63c | 50a~63c | 50a~63c | 50a~63c | 50a~63c | |
| Min Curvature Radius (m) | 3.0 / 3.5 / 4.6 | 3.0 / 3.5 / 4.6 | 3.0 / 3.5 / 4.6 | 4.6 | 4.6 | |
| Lifting Motor | Model | ZDX52-6 (ZD52-4) | ZDX62-6 (ZD52-4) | ZDX62-6 (ZD52-4) | ZDX62-6 | ZDX62-6 |
| Power (kW) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | |
| Rated Speed (r/min) | 920 (1400) | 920 (1400) | 920 (1400) | 920 | 920 | |
| Phase | 3 | 3 | 3 | 3 | 3 | |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | |
| Rated Current (A) | 40 | 40 | 40 | 40 | 40 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | |
| Travelling Motor | Model | ZDY22-4 (ZDY21-4) | ZDY21-4 | ZDY21-4 | ZDY22-4 | ZDY22-4 |
| Power (kW) | 1.5×2 (0.8×4) | 0.8×4 | 0.8×4 | 1.5×4 | 1.5×4 | |
| Rated Speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | |
| Phase | 3 | 3 | 3 | 3 | 3 | |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | |
| Rated Current (A) | 2.4×2 | 2.4×2 | 2.4×2 | 2.4×2 | 2.4×2 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | |
Non-standard capacity, lifting height and supply voltage are made to order.
| Technical Item | 16t | 20t | 25t | 32t | 50t |
|---|---|---|---|---|---|
| Rated capacity (t) | 16 | 20 | 25 | 32 | 50 |
| Lifting Height (m) | 9,12,16,18,20,24,30,35,40,45,48 | 9,12,16,18,20,24 | 9,12,16,18,20,24 | 9,12,16,18,20,24 | 9,12,16,18,20,24 |
| Lifting Speed (m/min) | 6(0.6)/8(0.8) | 3.5(0.3)/4(0.4) | 2.4(0.24)/3(0.3) | 2.4(0.24)/3(0.3) | 2.4(0.24) |
| Travelling Speed (m/min) | 24×2 | 24×2 | 24×2 | 24×2 | 24×2 |
| Wire Rope Diameter (mm) | 20 | 20 | 20 | 26 | 26 |
| Wire Rope Structure | 6×37+1 | 6×37+1 | 6×37+1 | 6×19+1 | 6×19+1 |
| I-beam Track Model (GB706-88) | 50a~63c | 50a~63c | 50a~63c | 50a~63c | 50a~63c |
| Min Curvature Radius (m) | 3.0 / 3.5 / 4.6 | 3.0 / 3.5 / 4.6 | 3.0 / 3.5 / 4.6 | 4.6 | 4.6 |
| Lifting Motor Model | ZDX52-6 (ZD52-4) | ZDX62-6 (ZD52-4) | ZDX62-6 (ZD52-4) | ZDX62-6 | ZDX62-6 |
| Lifting Motor Power (kW) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) | 18.5 (18.5/3.0) |
| Lifting Motor Rated Speed (r/min) | 920 (1400) | 920 (1400) | 920 (1400) | 920 | 920 |
| Lifting Motor Phase | 3 | 3 | 3 | 3 | 3 |
| Lifting Motor Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Lifting Motor Rated Current (A) | 40 | 40 | 40 | 40 | 40 |
| Lifting Motor Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Travelling Motor Model | ZDY22-4 (ZDY21-4) | ZDY21-4 | ZDY21-4 | ZDY22-4 | ZDY22-4 |
| Travelling Motor Power (kW) | 1.5×2 (0.8×4) | 0.8×4 | 0.8×4 | 1.5×4 | 1.5×4 |
| Travelling Motor Rated Speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 |
| Travelling Motor Phase | 3 | 3 | 3 | 3 | 3 |
| Travelling Motor Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Travelling Motor Rated Current (A) | 2.4×2 | 2.4×2 | 2.4×2 | 2.4×2 | 2.4×2 |
| Travelling Motor Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
Non-standard capacity, lifting height and supply voltage are made to order.
Overview

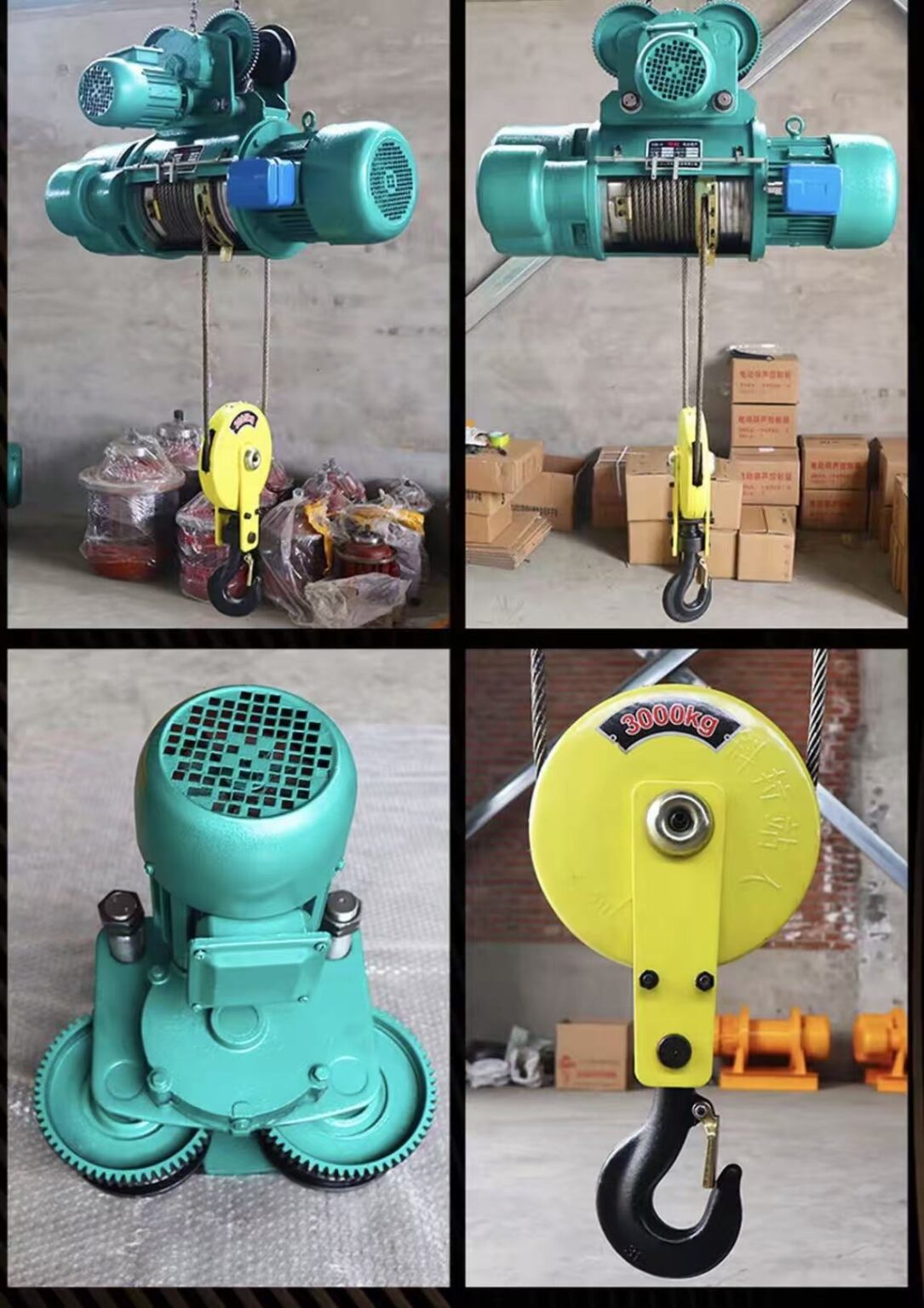

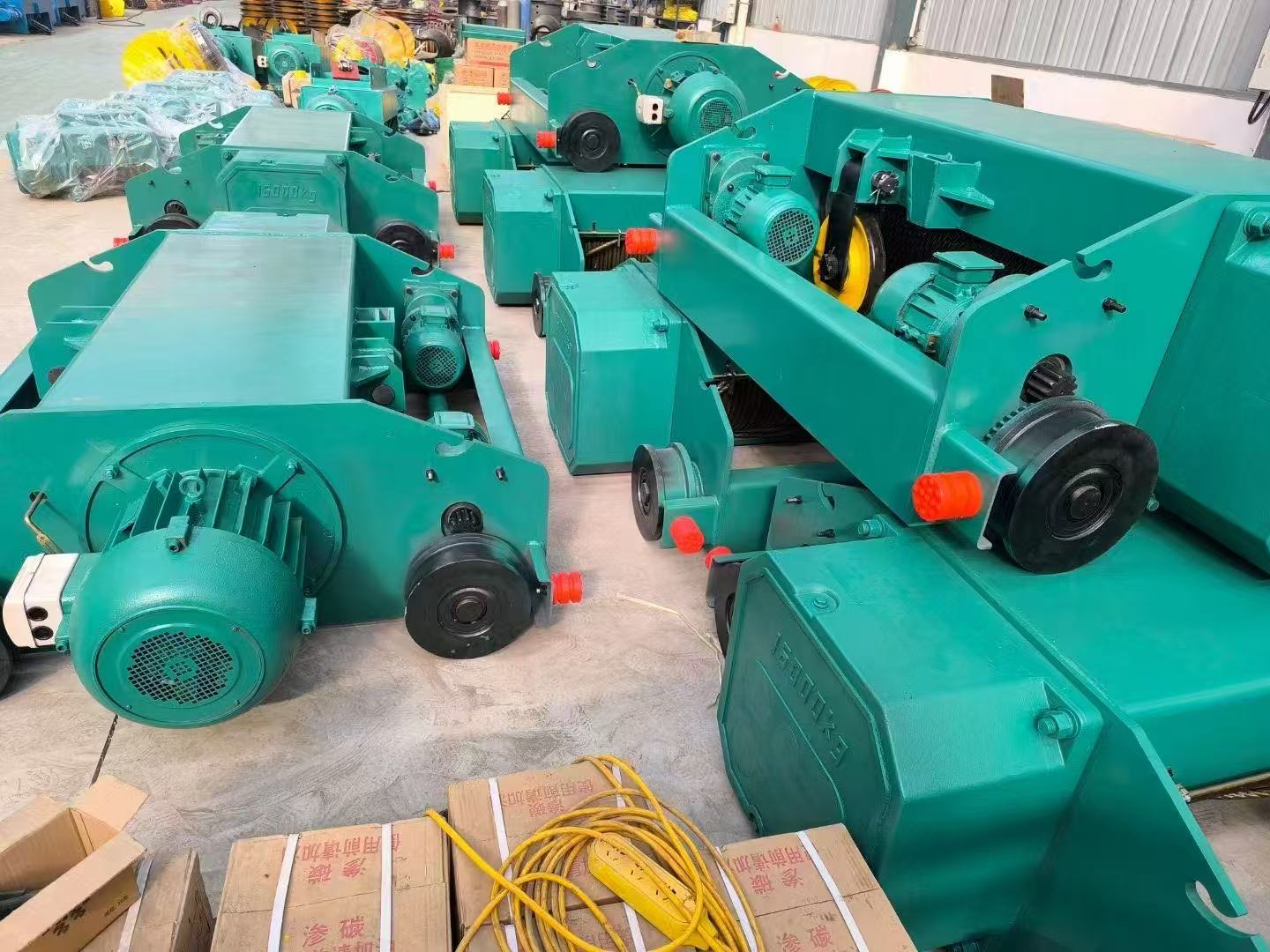

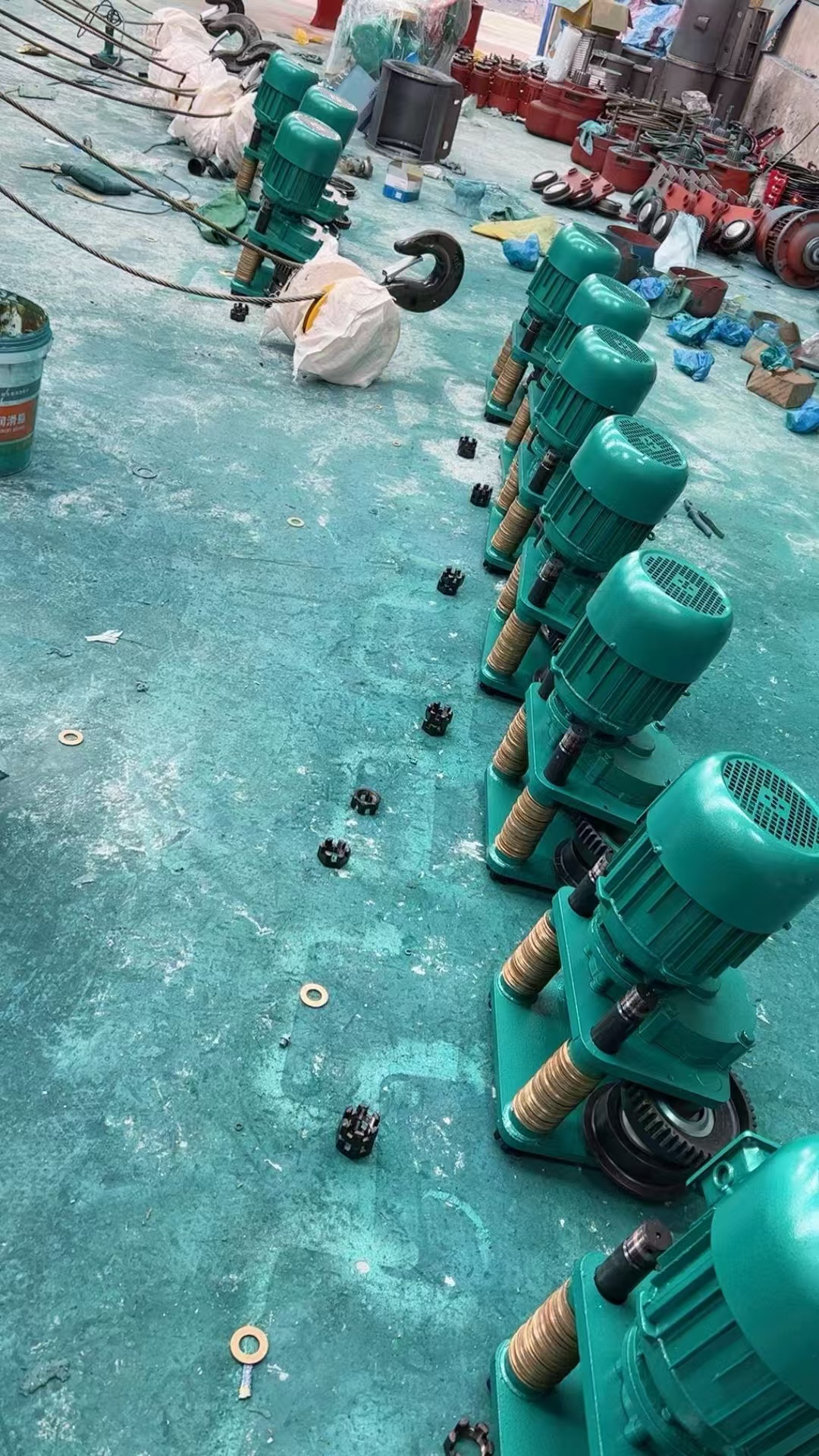

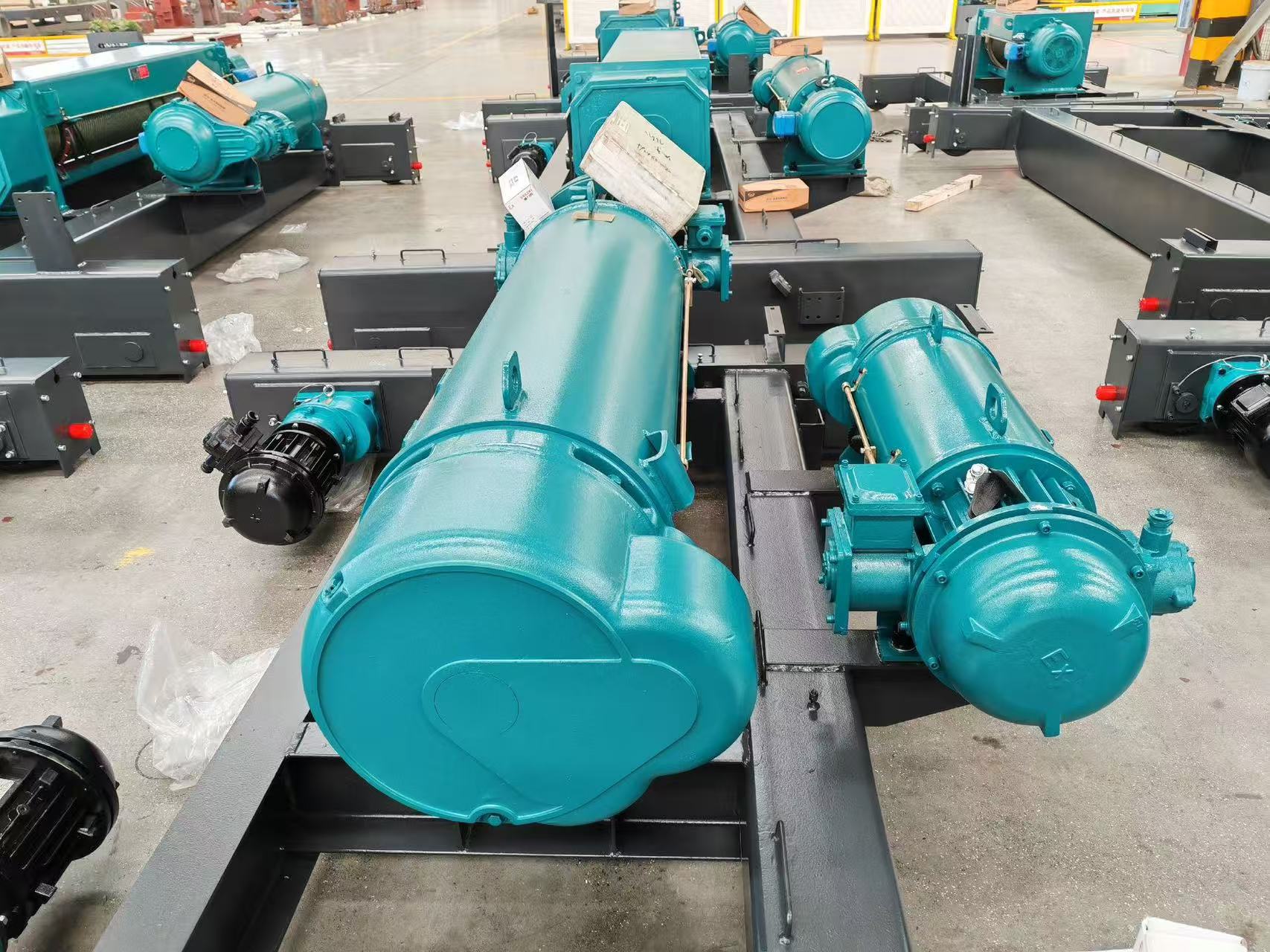

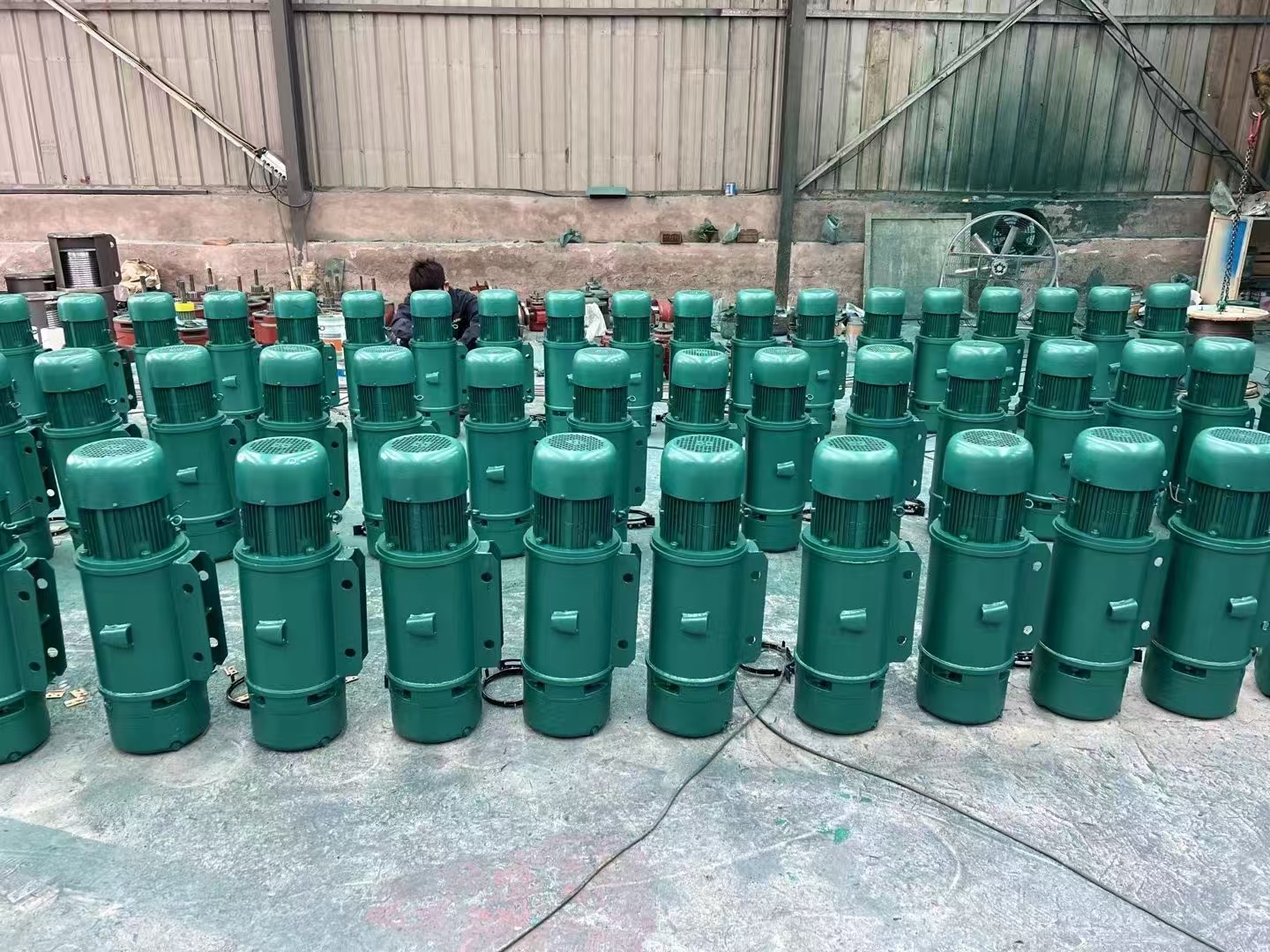

HC Square Box Heavy Duty Electric Hoist
The HC square-box wire rope electric hoist is a professional heavy-lifting solution for large tonnage loads, different from ordinary CD/MD cylindrical light-duty hoists. It adopts a solid square box and planetary reducer, focusing on heavy load work of 16 t and above. It is compatible with double-girder overhead cranes and gantry cranes for frequent heavy-duty operations, while HCM and HM are its dual-speed models with adjustable lifting speed.
The HC hoist is designed for altitudes up to 1000 m, ambient temperatures from -25°C to +40°C and relative humidity up to 85% (at +25°C) with no corrosive gas, on a 380 V, 50 Hz supply. It is not suitable for lifting high-temperature, toxic, flammable or explosive loads. Lifting heights run from 9 m to 48 m, and the hoist is supplied in travelling and fixed versions.
Key features
-
01
Heavy-duty square planetary reducer structure with M3–M6 working class, which withstands long-term, frequent heavy-load lifting far better than ordinary cylindrical hoists.
-
02
Compact low-headroom design with fully sealed housing and good dust and moisture resistance, suited to limited-height factories and harsh industrial environments.
-
03
Complete safety protection, including motor overheat protection, upper and lower limit switches and an optional overload limiter.
-
04
Modular split structure for easy maintenance; available as single-speed HC and dual-speed HCM/HM models with custom options (explosion-proof, wireless remote, variable frequency).
Where it is used
- Heavy Machinery & Steel Structure Workshop Large steel component lifting, mold turnover, heavy workpiece assembly and long-cycle material transportation for heavy manufacturing factories.
- Construction & Large-scale Engineering Steel frame erection, heavy equipment hoisting, bridge component installation and heavy material handling at construction sites.
- Metallurgy & Heavy Processing Heavy workpiece transfer in steel mills and continuous, frequent heavy lifting in metal processing workshops (not for high-temperature loads).
- Port & Logistics Yard Heavy container parts loading/unloading, bulky cargo stacking and cross-region heavy goods turnover at freight terminals.
- Mining & Energy Industry Heavy equipment handling at mine sites, wind power large parts installation and maintenance, photovoltaic heavy bracket mounting.
- Heavy-duty Crane Supporting Perfect matching double-girder overhead cranes and gantry cranes for 16t+ high-frequency intensive heavy lifting operations.
